TYPE-X ™ PRO Registered Design Number 201814836
1.15KM BEAM DISTANCE
THE PRO STANDARD
You only need one glance to realize that the sky was the limit when designing the STEDI TYPE-X ™ PRO (Registered Design Number 201814836 & Registered Trademark)
1.15KM BEAM THROW

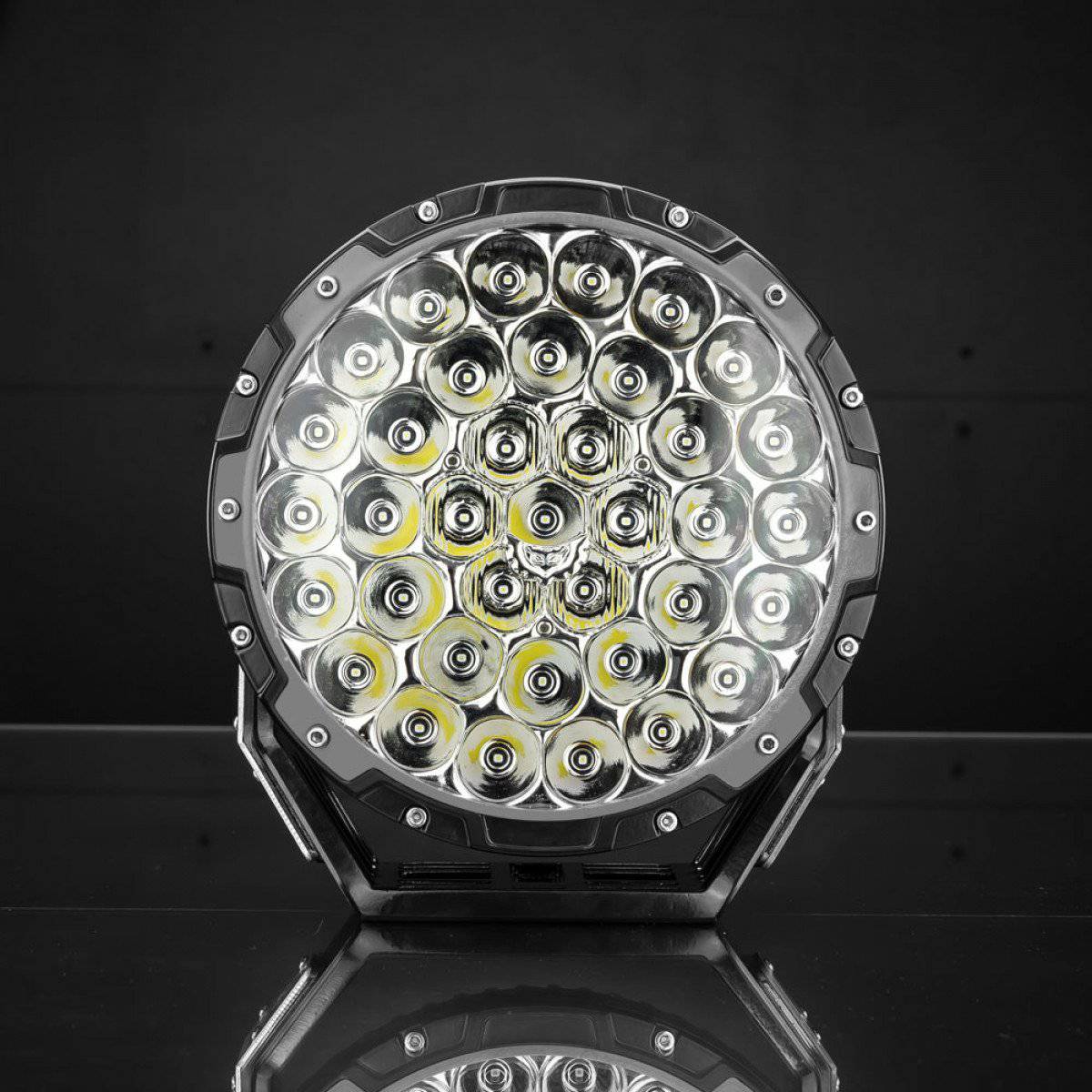

Using the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly-functional beam pattern. No doubt the attention grabber is the unrelenting beam distance of 1.155km, however, the real strength of our Type-X™ PRO is in mid to long-range light distribution that really sets it apart. An astonishing beam throw coupled with a homogeneous wide beam will have you insist on driving only when the sun's down.
YOUR LIGHTS YOUR WAY.

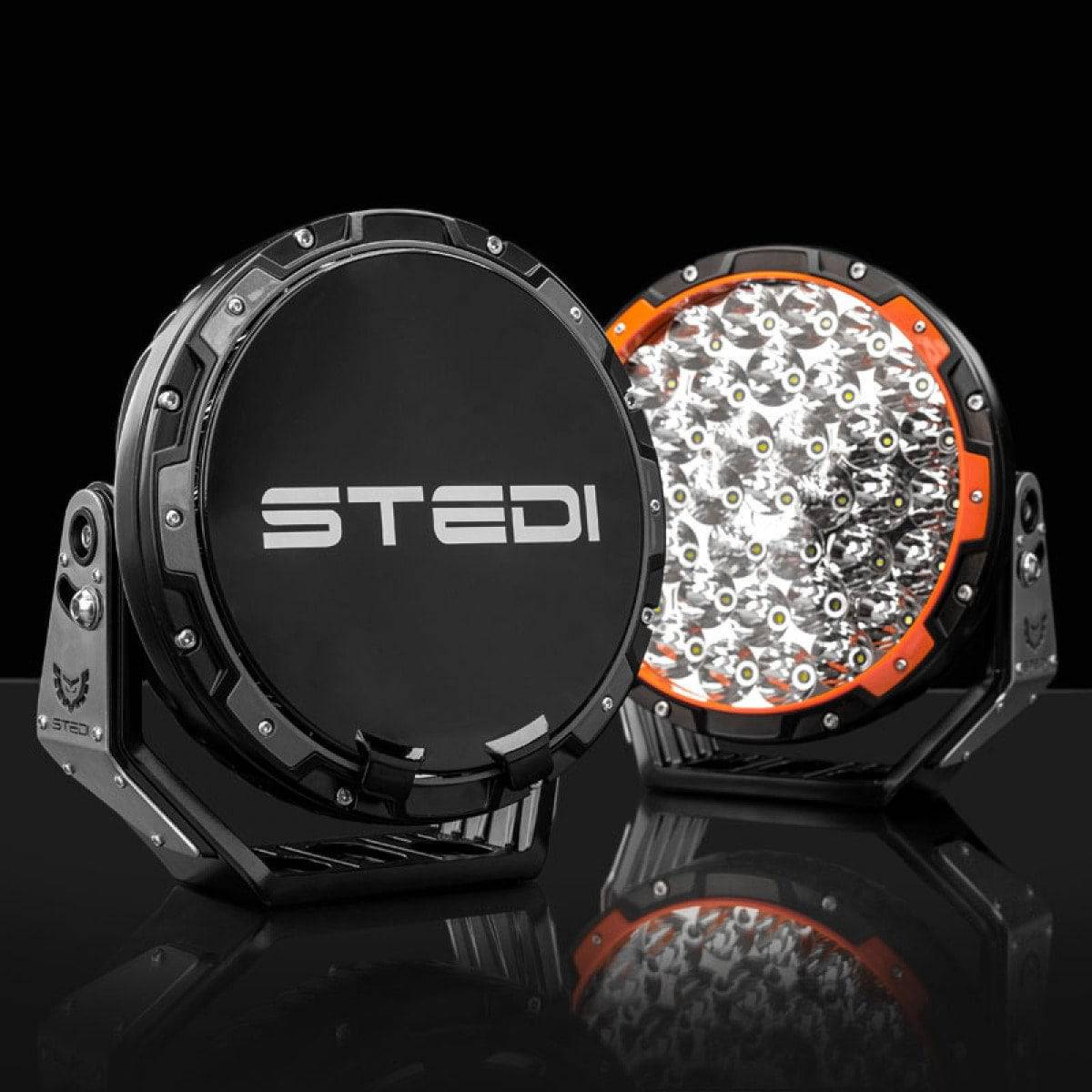

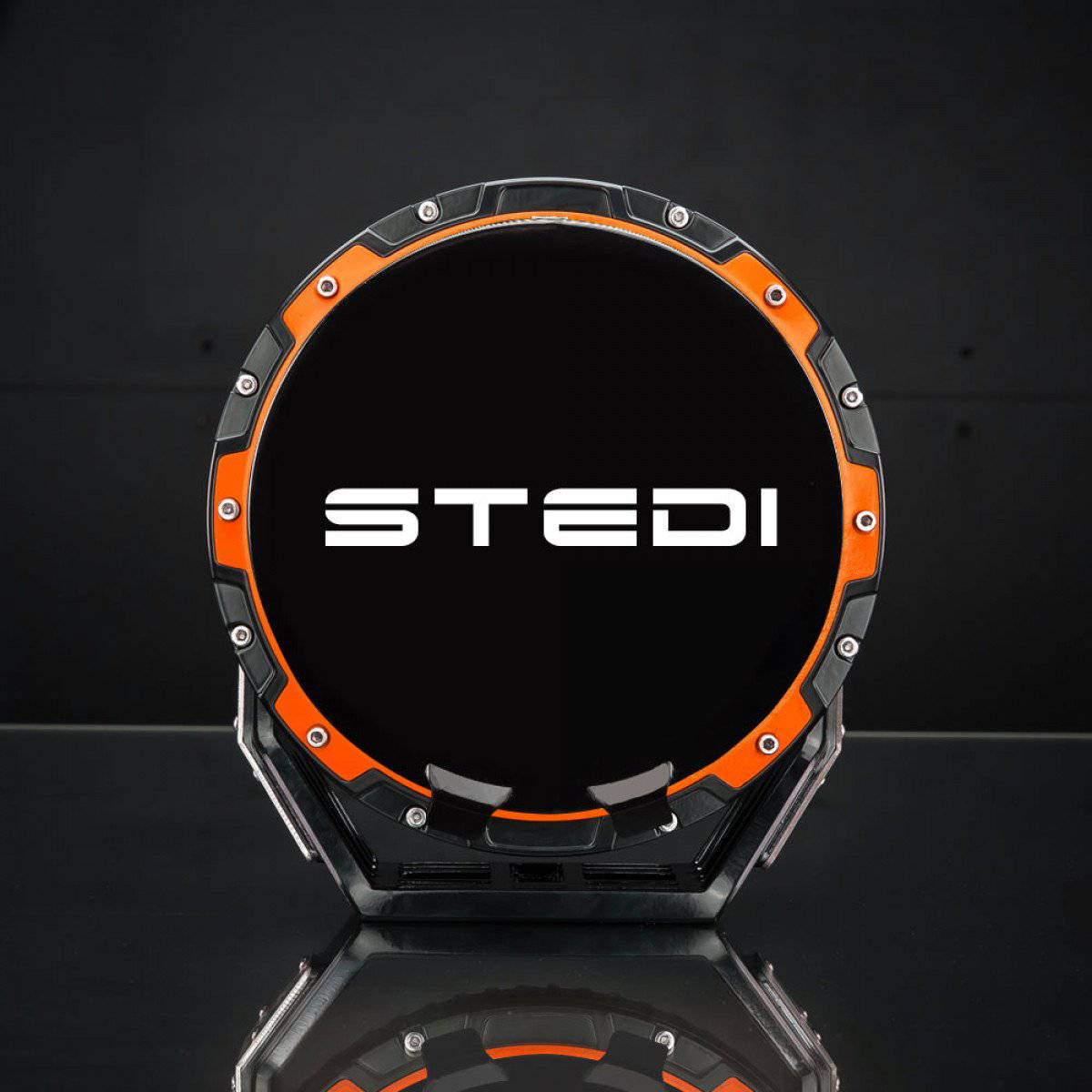

Pink? Green? Blue? Orange? Grey or all Black? The choice is yours. We've designed the inner ring fasteners to be independent of the main sealing structure, allowing you to change the colour that best suits. We've included grey and orange in the kit to get you started, or if you prefer all black, simply don't fit any ring at all. Our coloured filters and iconic STEDI smile covers are backward compatible too.
Additional colours sold separately.
A WOLF IN WOLF'S CLOTHING

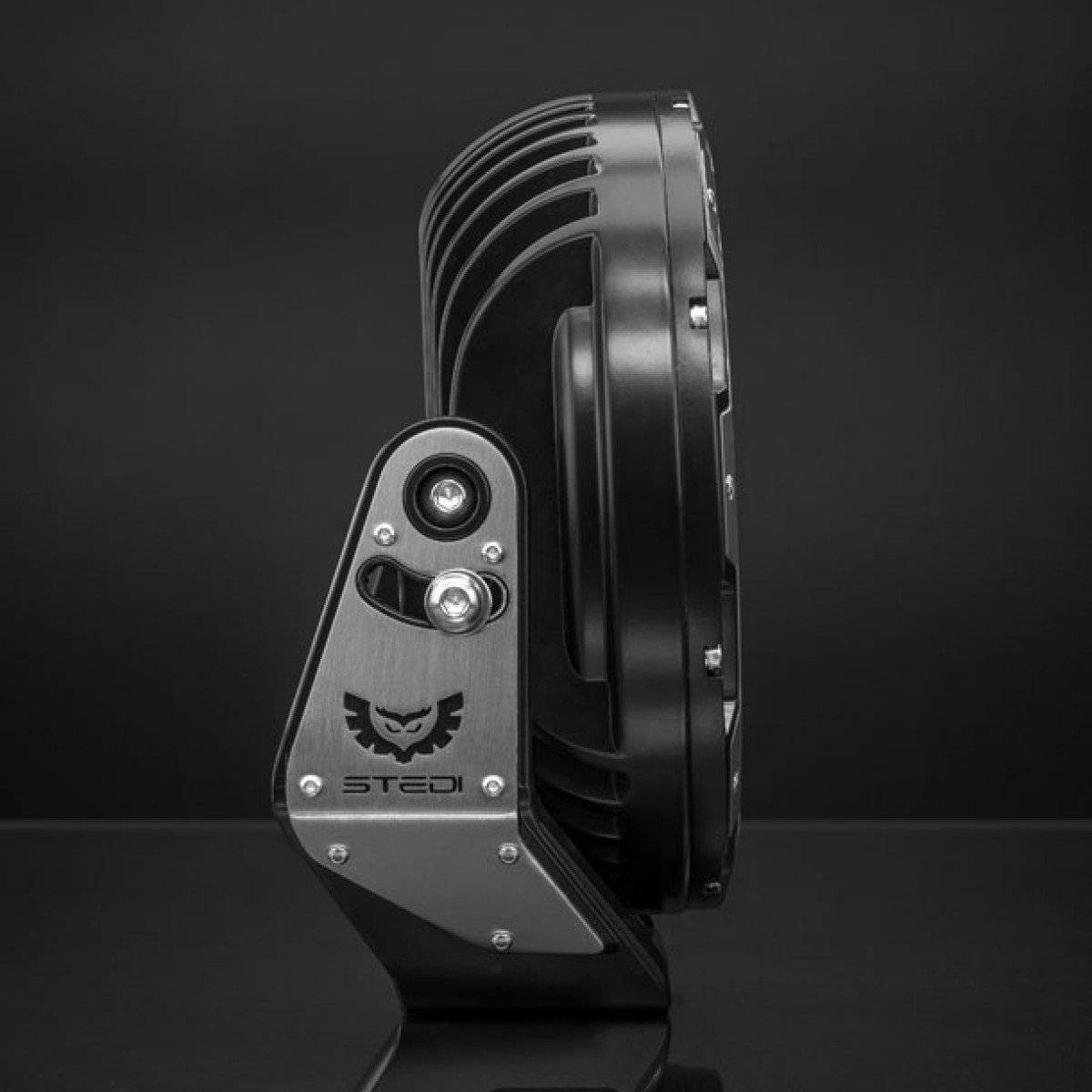

Forget folded steel brackets 3mm 4mm or 5mm it's all yesterday's news. Type-X™ PRO is all about pushing boundaries, the bracket system is a 10mm thick high-pressure die-cast aluminum marvel of engineering. Ribbed in all the right places to ensure no vibration and no prospect for fatigue. Our Type-X™ PRO bracket was designed to withstand extreme and prolonged corrugations time and time again. True to STEDI's signature design principles we’ve added brushed stainless steel shoulder plates, which will look just as comfortable on a tricked out 70 series as it will be mounted to a PRO race buggy.
PROPER TESTED PHOTOMETRIC DATA
Don’t confuse our Isolux and Lumens with the baseless numbers circulating around the internet. Our published specifications are comprehensively tested by a photometric laboratory. We stand by our photometric data.
|LED||37 x Oslon High-Flux LED|
|RAW LUMENS||26,270 (Pair)|
|TESTED LUMENS||15,870 (Pair)|
|AMP DRAW||10.4A @ 13.2v (each)|
|BEAM PATTERN||6 x Spread 31 x Pencil Beam|
|INGRESS PROTECTION||IP68 | Submersible up to 3m|
|COLOUR TEMP (CCT)||5700K|
|VOLTAGE COMPATIBILITY||12v & 24v|
|LUMEN MAINTENANCE||50,000 LM-80|
|10 M||13,340 Lx|
|50 M||533 Lx|
|200 M||33 Lx|
|300 M||14 Lx|
|400 M||8 Lx|
|1,000 M||1.3 Lx|
|1,155 M||1 Lx|
WHAT’S IN THE BOX
- 2 x STEDI Type-X PRO LED Driving Lights
- 2 x Protective STEDI Black Out Covers
- 2 x Grey Colour Rings
- 2 x Orange Coloured Rings
- 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
- Complete Stainless Steel fastener kit.
- Wiring & Fitting Instructions
