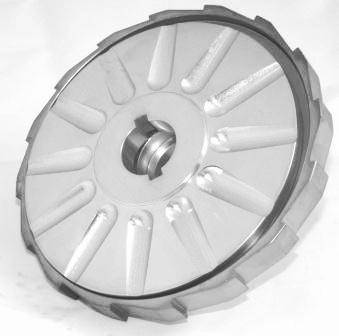

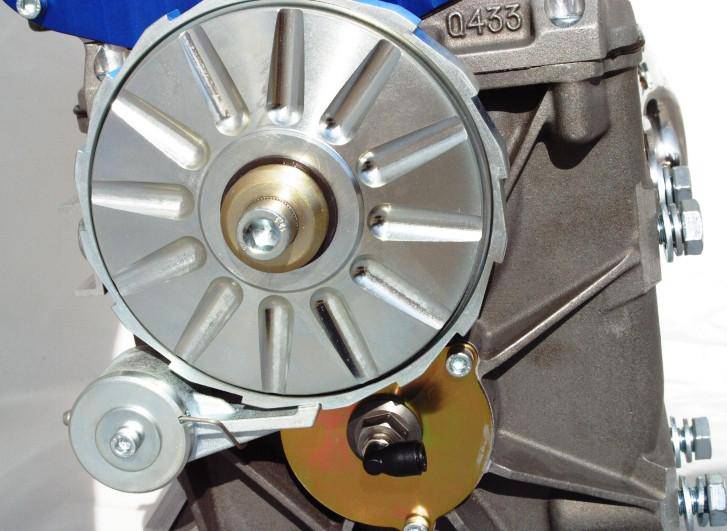

The GP billet brake assembly is precision machined from billet & is used on our GP Winches but is available as an upgrade replacement for a Warn 8274.
This item is just the 3 brake assembly plates, it does NOT include the brake hardware inside. Brake hardware can be found here.
Due to the increased material strength & manufacturing process the brake assembly will last much longer than the standard Warn items (Pt no’s: 8703, 7601, 7600).
We have designed the ratchet reducing the number of teeth to 15 rather than 18, this reduces the risk of the pawl semi engaging which could cause considerable damage.
The inner & outer disc’s provide more positive engagement with the woodruff keys & large cam gear on the winches mainshaft.
To enhance the brake assembly, they are polished to give a professional long lasting finish.
Benefits of the GP brake assembly are:
• Reduced teeth on brake ratchet
• Improved brake performance
• Superior material quality
• Enhanced reliability
• Aesthetically pleasing
• Suitable for M8274 & GP82/83 winches
