Description

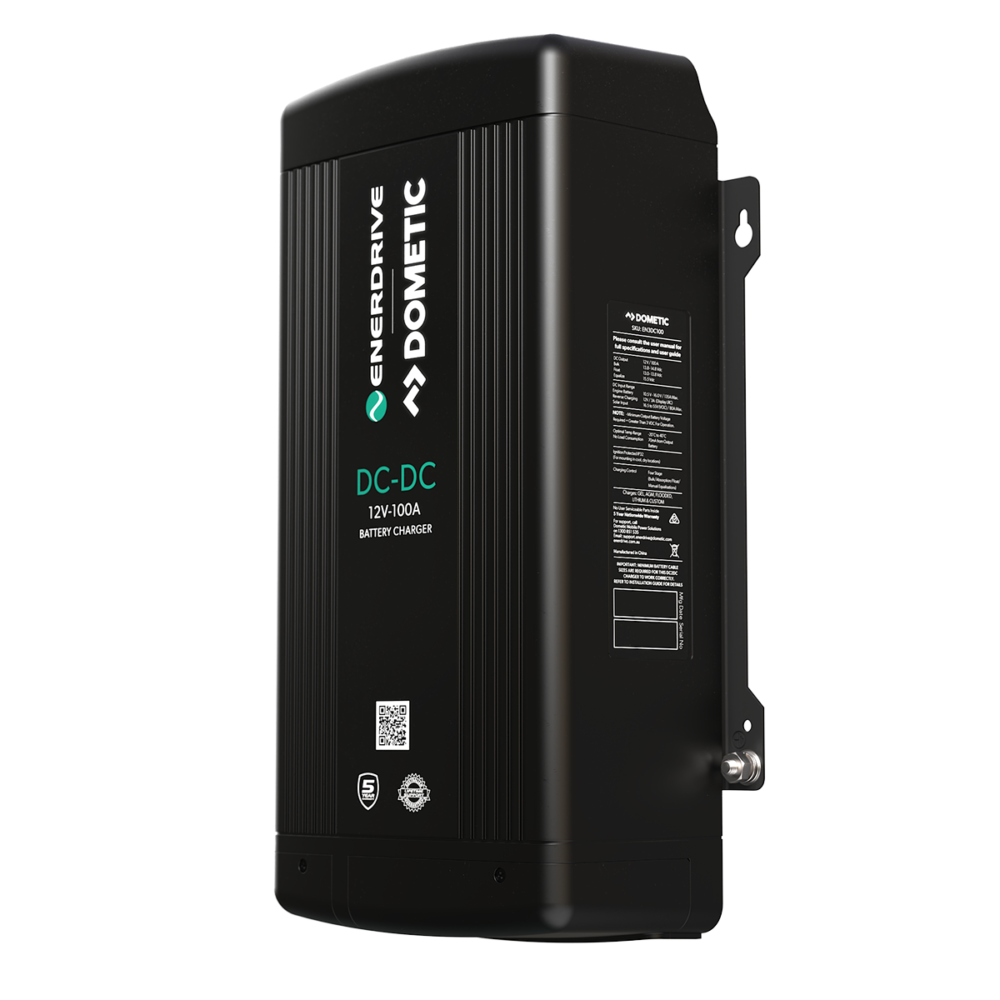

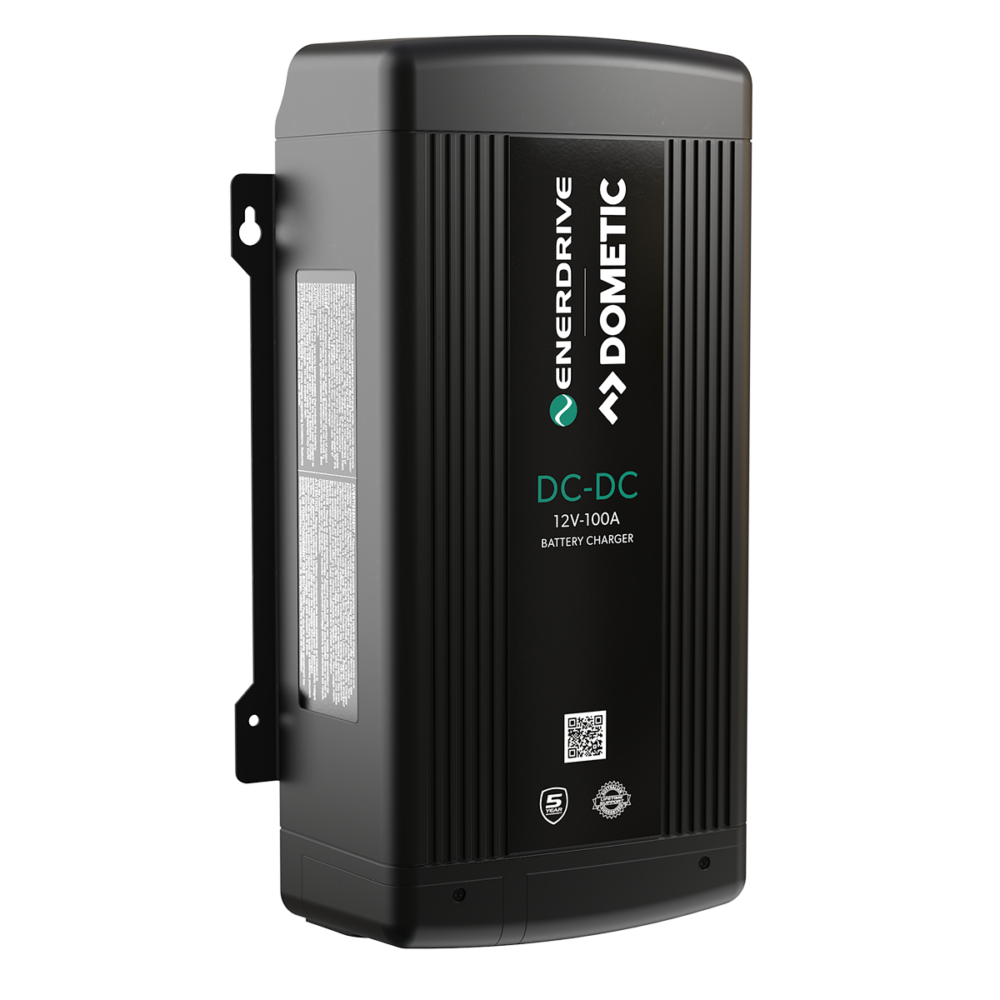

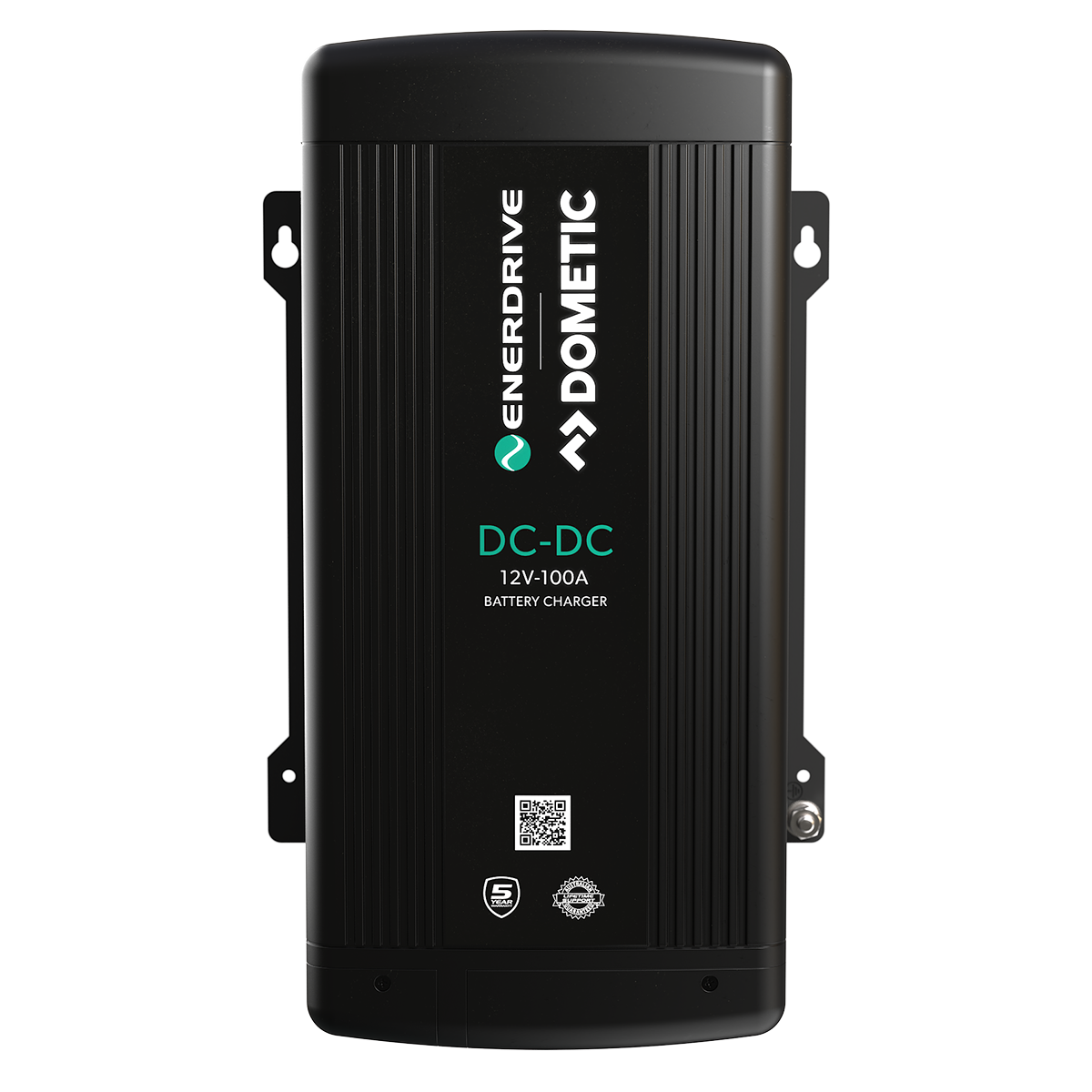

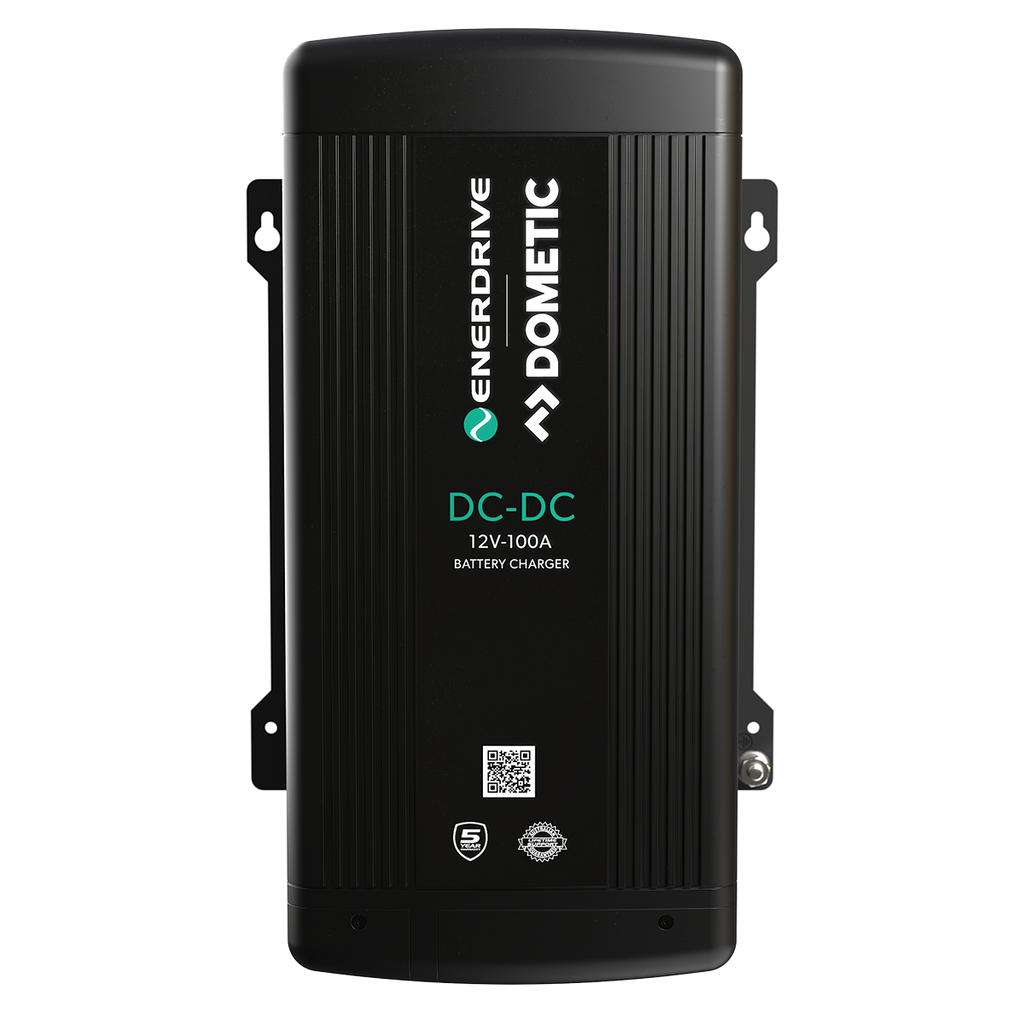

Fast charge your batteries with the Enerdrive | Dometic 12V 100A DC-DC Charger. With dual DC inputs for alternator and MPPT solar charging, the unit can draw power from either your vehicle's alternator or solar panels.
Engineered for high-output systems, this solution is the perfect match for vehicles, trucks, caravans, motorhomes, and marine vessels equipped with large alternators. Experience superior efficiency with a fully programmable remote LCD display and intelligent multi-stage charging.
Consult your vehicle handbook or dealer to confirm capability.
- Ultra fast charging up to 100A via alternator, or 80A via Solar

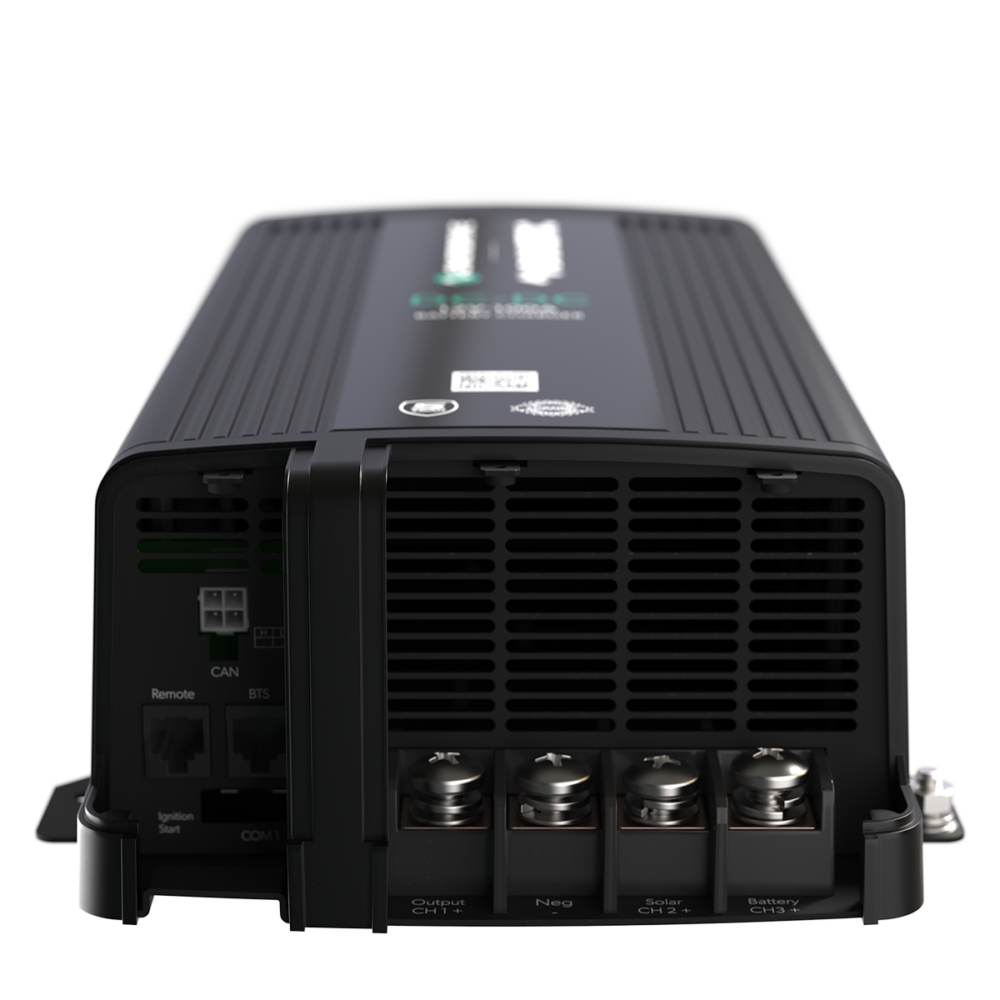

- Two totally independent DC Inputs for both engine and solar regulation charging one house battery bank output
- Dedicated Maximum Power Point (MPPT) solar regulator
- Multi-stage charging algorithms
- Smart Charging, automatically regulates output for optimal charging
- Fan Cooled for optimal performance in high ambient temperatures
- Compatible with Lithium, AGM, Program, Fixed Power Supply, and Flooded batteries

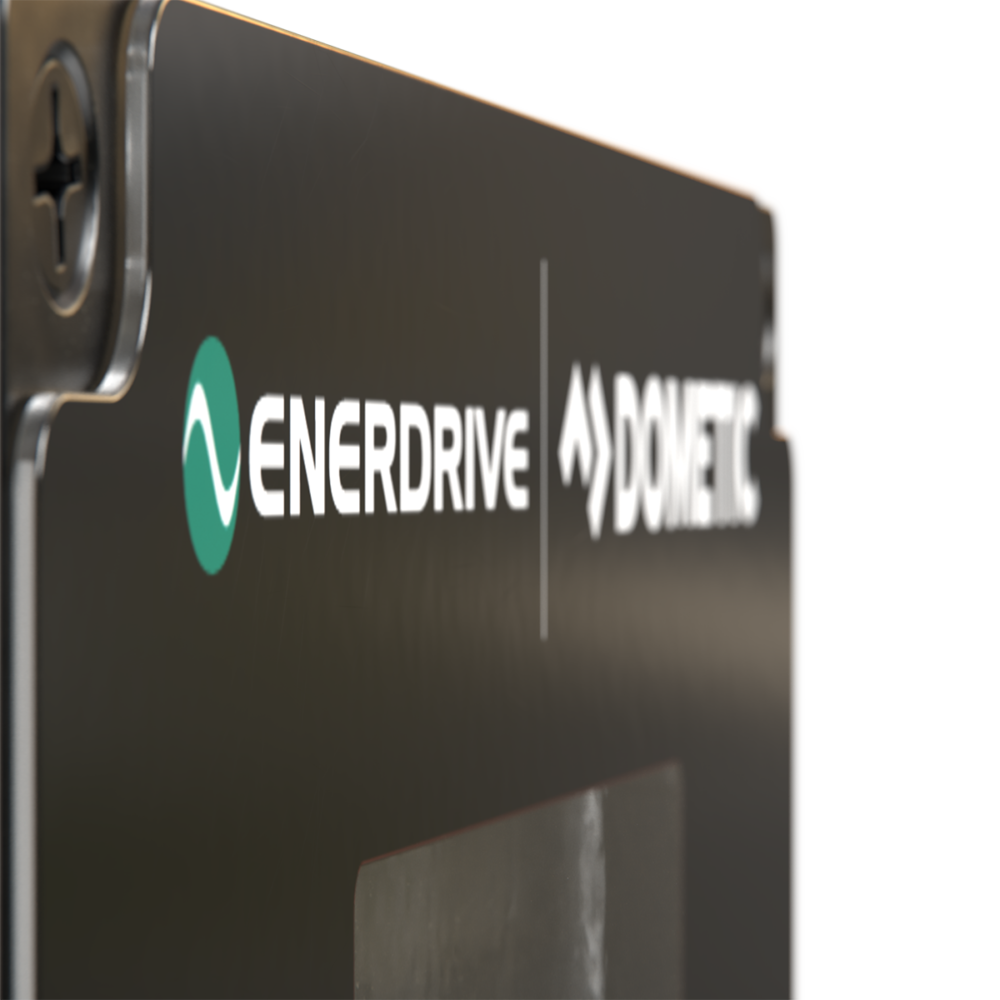

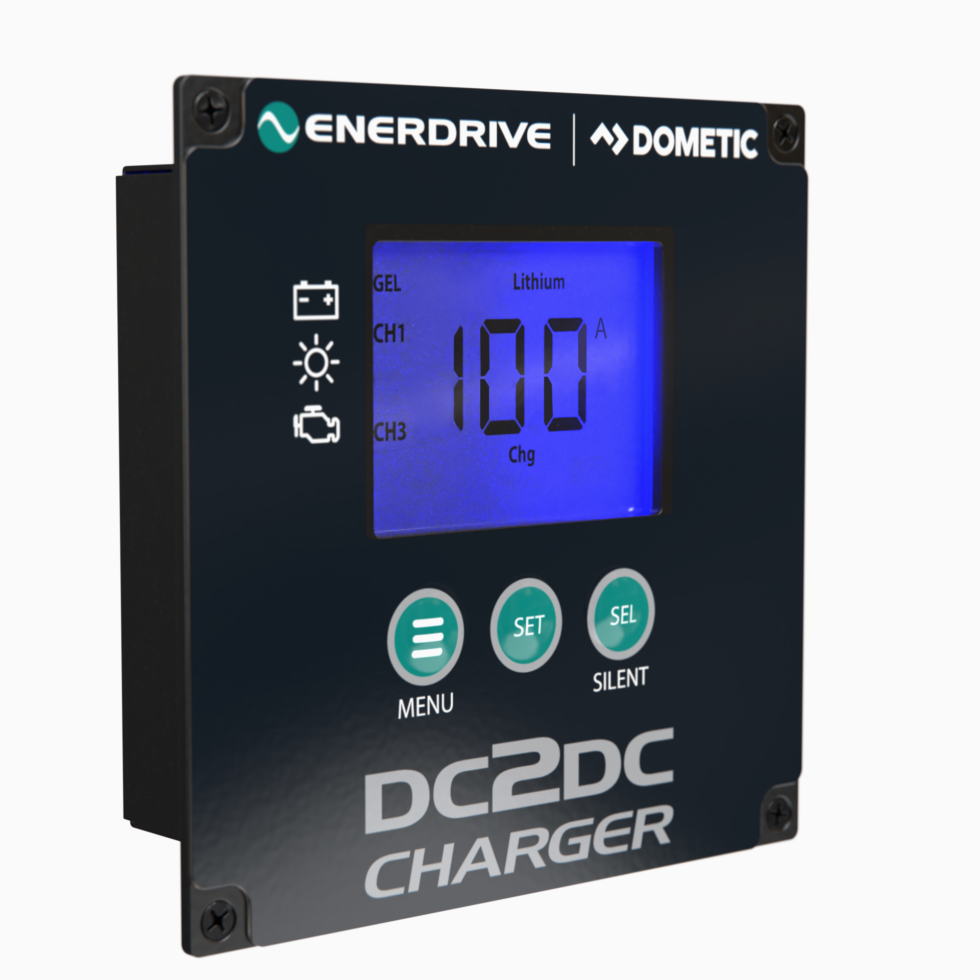

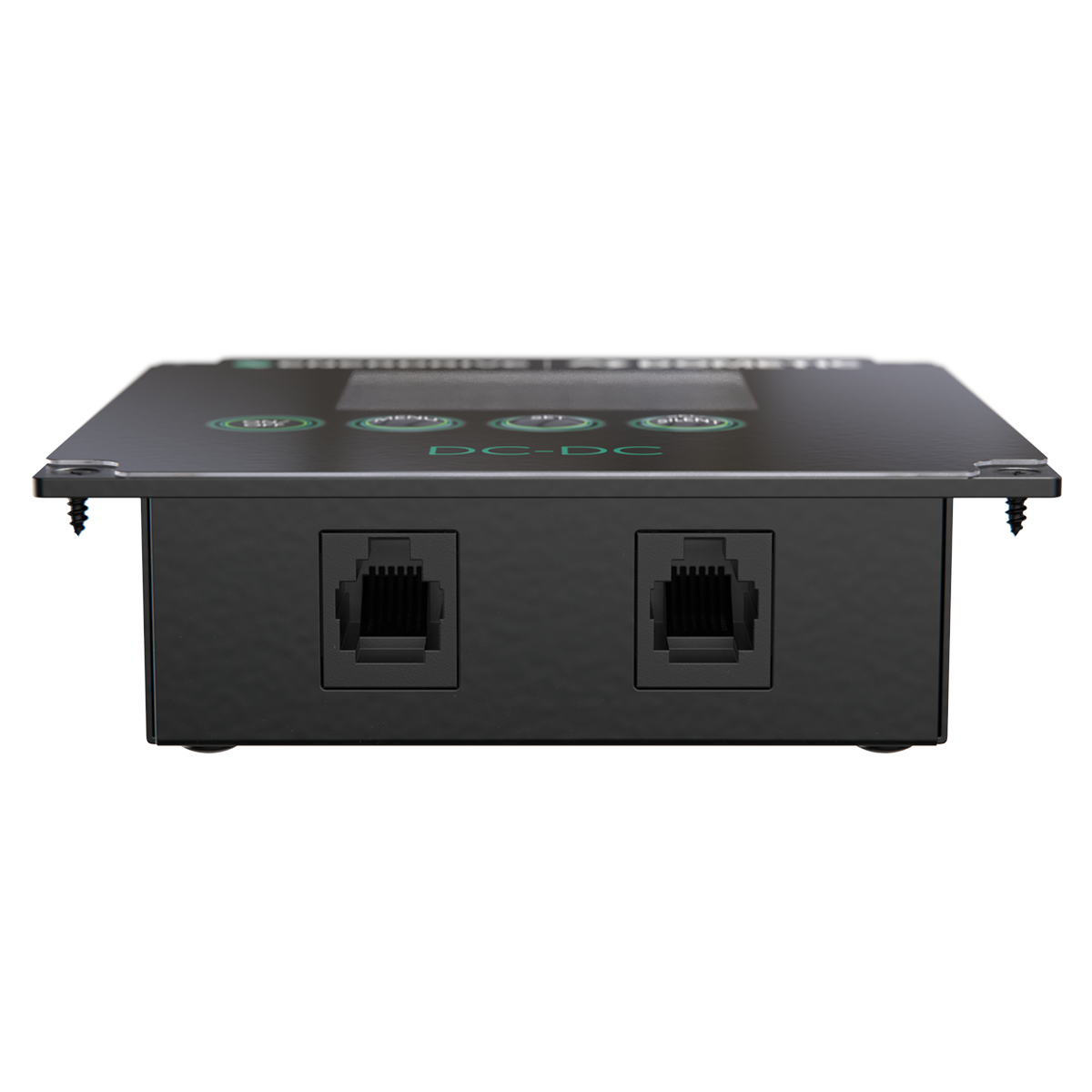

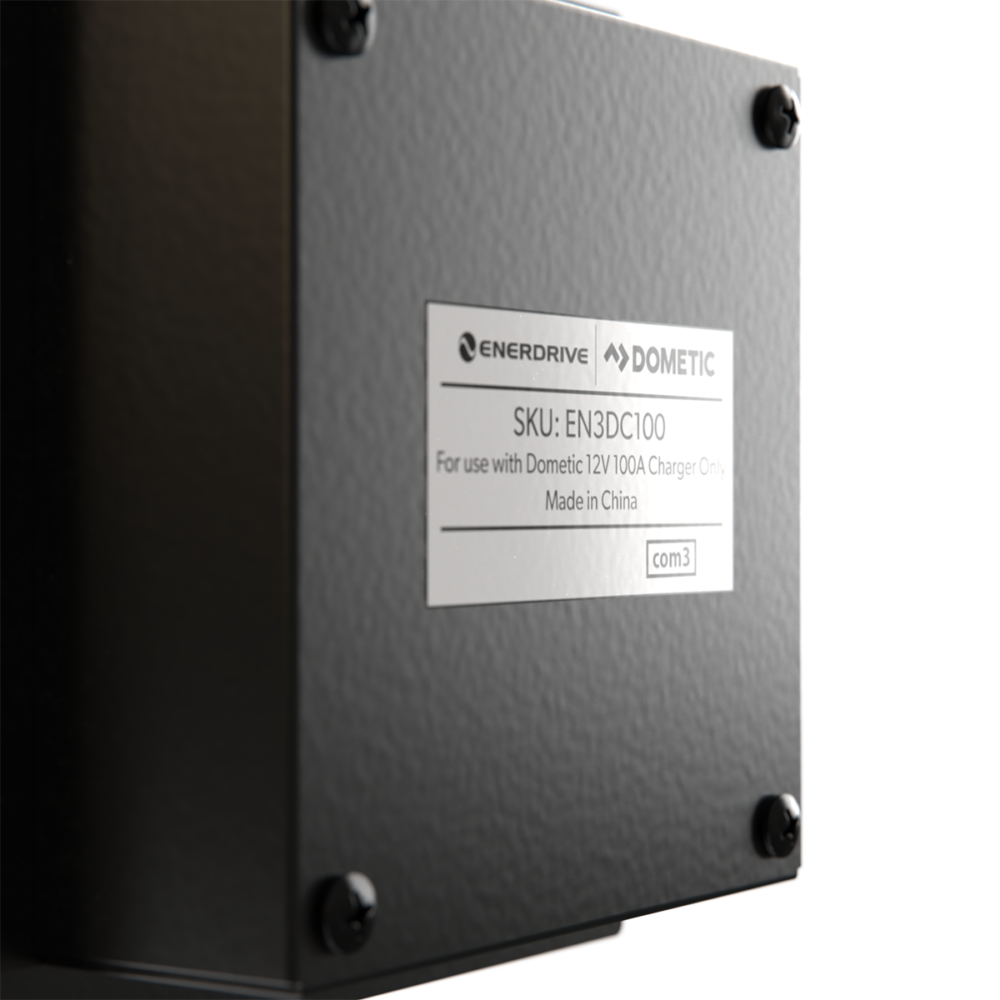

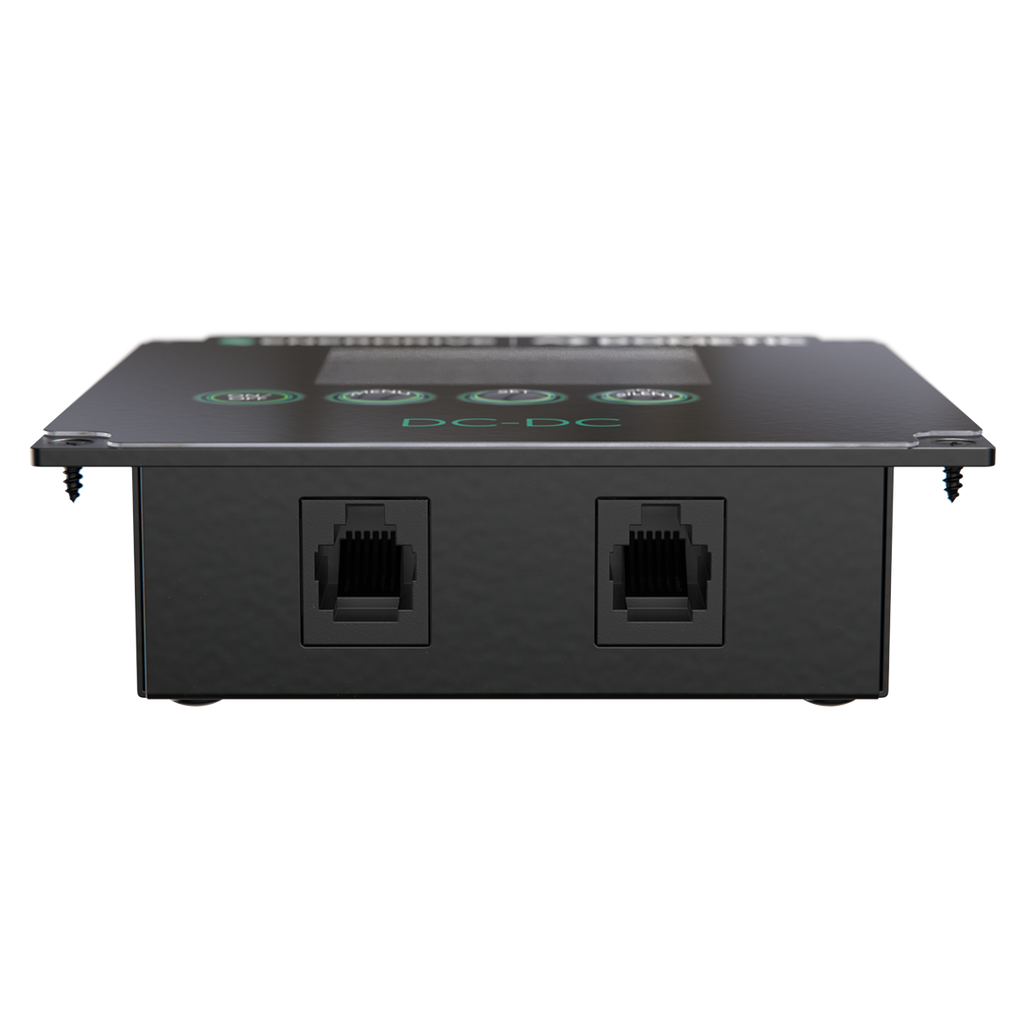

- Remote display included
- 5 year warranty
Specifications
Model: EN3DC100
Max Output Current: 100A
Charging Control: 4 Stages (Test/Bulk/Absorption/Float)
Input Range (Vehicle): 10.5-16V / 135A Max
Input Range (Solar): 16.5-55VOC / 80A Max
Efficiency: >90%, MPPT Tracking Efficiency: >98%
Communication: CANBUS
Dimensions: 356 x 205 x 97mm
Weight: 3.23kg
Ingress Protection: IP32
Warranty: 5 Years
