Boss Air 4WD Coil Assist Airbag Suspension Kit 3" - 6" for Nissan Patrol - LAT-15


Options: Airbag Kit Only
Price:
Sale price$419.00

Description

!!! FREE FREIGHT !!!

LAT15 – Triple Convoluted Air Bag Coil Assist Kit to suit 3-6″ Nissan Patrol GQ GU Rear

This is a Rear Coil Assist Kit for Nissan Patrol GQ and GU.

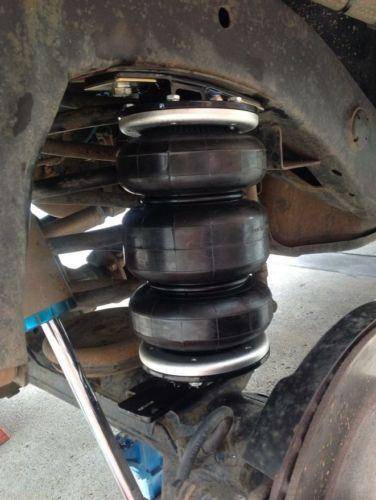

The air bags sit directly under the chassis and mount onto the bump stop strike plate and effectively replace the bump stops in the rear.

Keep your coils – these sit beside the coil under the chassis.

Primarily their purpose is to assist with carrying loads. Rated at 1.2t per bag that’s heaps of weight you can carry and do so at what ever height you want. But there were 3 added bonuses with this kit in the Patrols…

  • These mount to the under side of the chassis and relieve the coil towers of the loads normally exerted on them and so eliminate the cracking and coil tower problems people experience with heavy springs or coil inserts.
  • Patrol coils are close together and offer little sideways stability. The bags being outside of the coils offer a wider stance and significantly improved stability and handling.
  • Air bags dont rebound like steel springs and constantly push the wheels down. So you get a more constant down pressure when negotiating bumps when climbing steep hills and this results in improved traction.

BOSS Air Suspension does air bag load assist kits for virtually every type of ute, SUV or commercial van in Australia. With over 20,000 kits out there BOSS stand by their 5 year warranty on all bags and mounting brackets. BOSS also supply light weight air tanks and a range of fast 12v and 24v compressors.

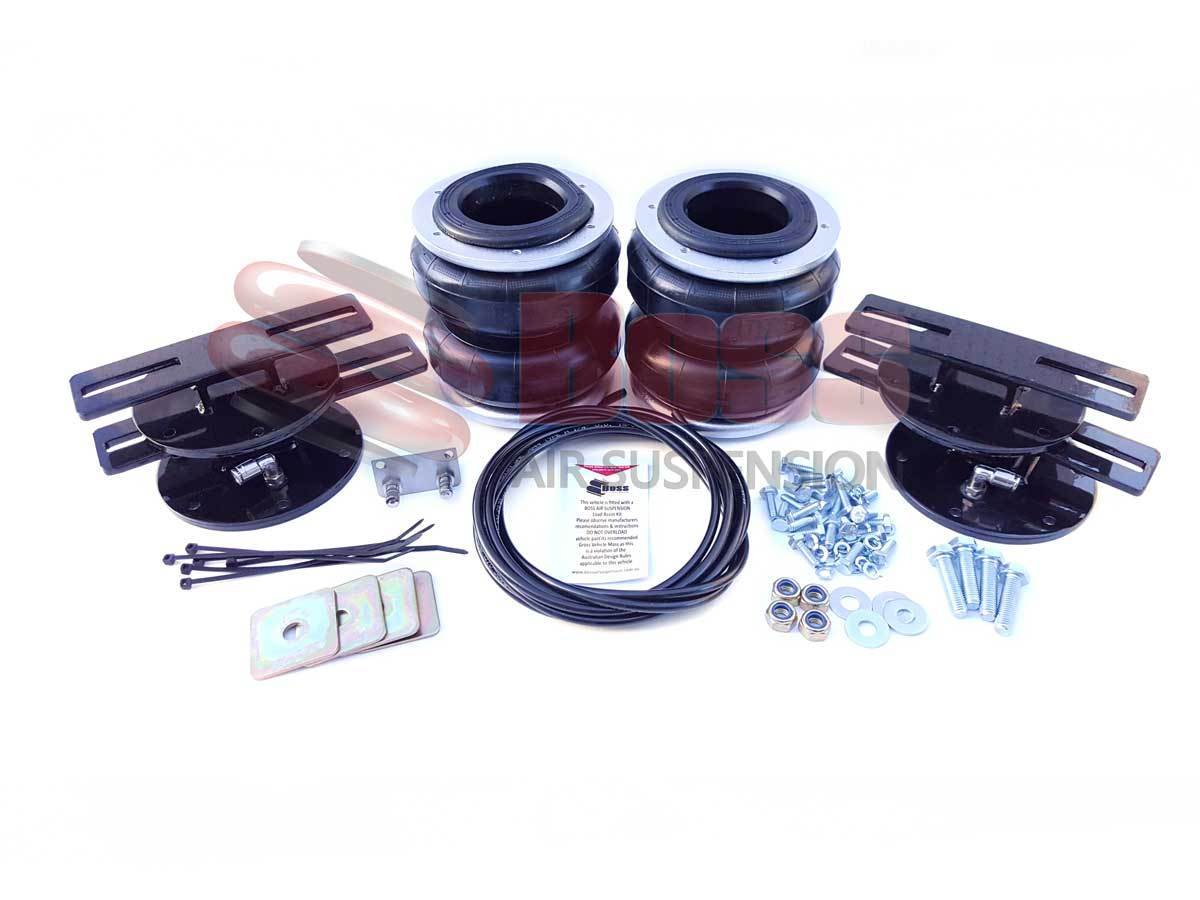

This kit comes complete with bags, mounting brackets, air lines and valves to do both sides at the rear.

There is a double convoluted bag kit LA-15 which does normal to 2″ lifts and then there is a triple bag kit LAT-15 that does 3″ to 6″ lifts. The bags will out reach the shocks so wont limit wheel travel.

---------------------------------

OPTIONS

Manual Articulation Kit

With a simple switch to turn on the bag to bag air bypass, you can now extend your BOSS load assist kit when 4 wheel driving to give you upward wheel travel and increased droop or downward travel.

This is achieved by our valve being manually opened or closed opening the airlines between the left and right side airbags. Now the air can move freely between the 2 airbags.

Ideal for rocky 4 wheel drive terrain.

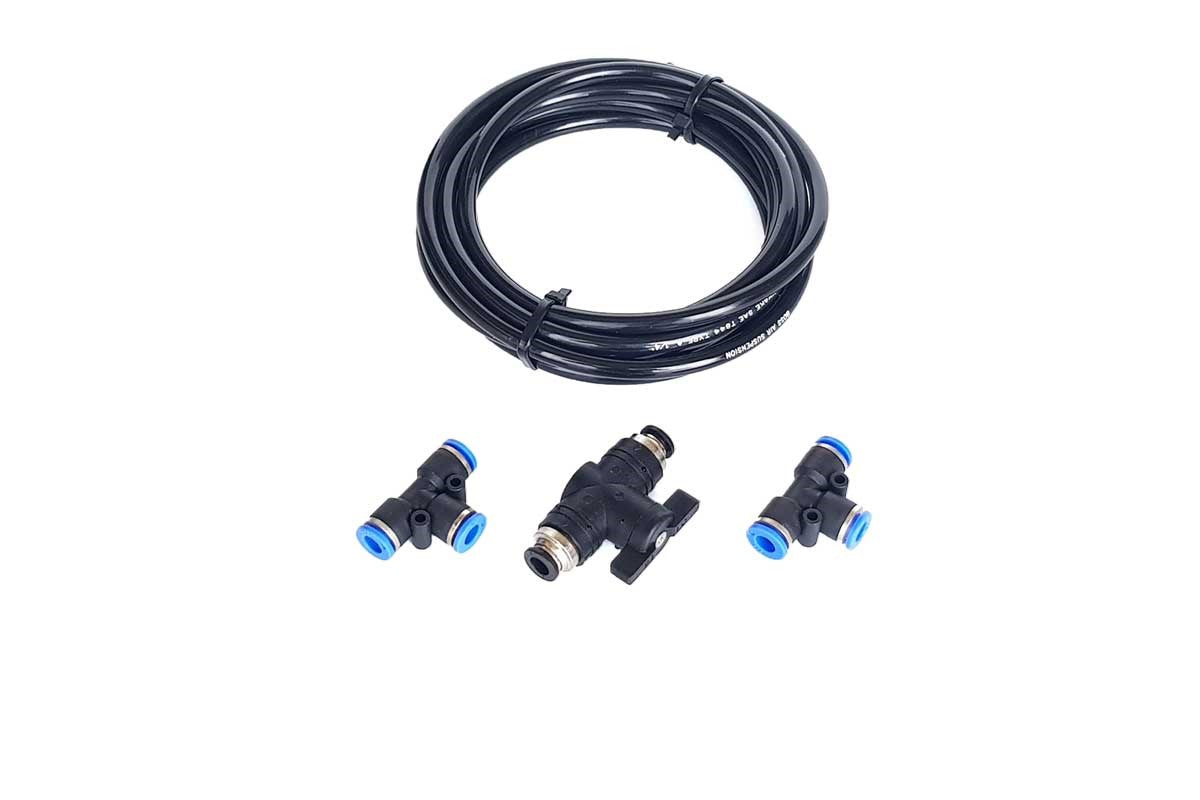

Kit comes with:

1 x Ball Valve with 1/4″ Push-lock Fittings
2 x 1/4″ push-lock T pieces
2 mtrs of DOT approved 1/4″ Air Line

Warning – This kit should only be activated when in an off road environment and not for speeds in excess of 10KPH

---------------------------------------

Electric Articulation Kit

With a simple pressing a button in the cab, you turn on the bag to bag air bypass. Your BOSS load assist kit will now work well when 4 wheel driving to give you upward wheel travel and increased droop or downward travel.

This is achieved by our ball valve being electrically opened or closed opening the airlines between the left and right side airbags. Now the air can move freely between the 2 airbags.

Ideal for rocky 4 wheel drive terrain.

Kit comes with:

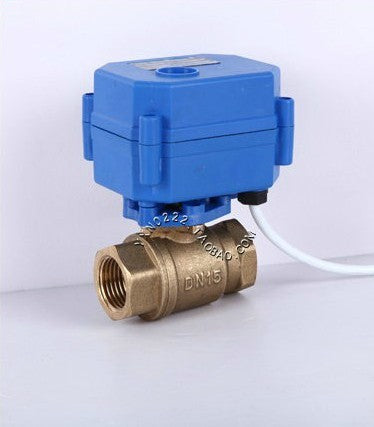

1 x Electrically operated Ball Valve with 1/4″ Push-lock Fittings
2 x 1/4″ push-lock T pieces
2 mtrs of DOT approved 1/4″ Air Line
1x LED latching on/off button switch

Warning – This kit should only be activated when in an off road environment and not for speeds in excess of 10KPH
