Description

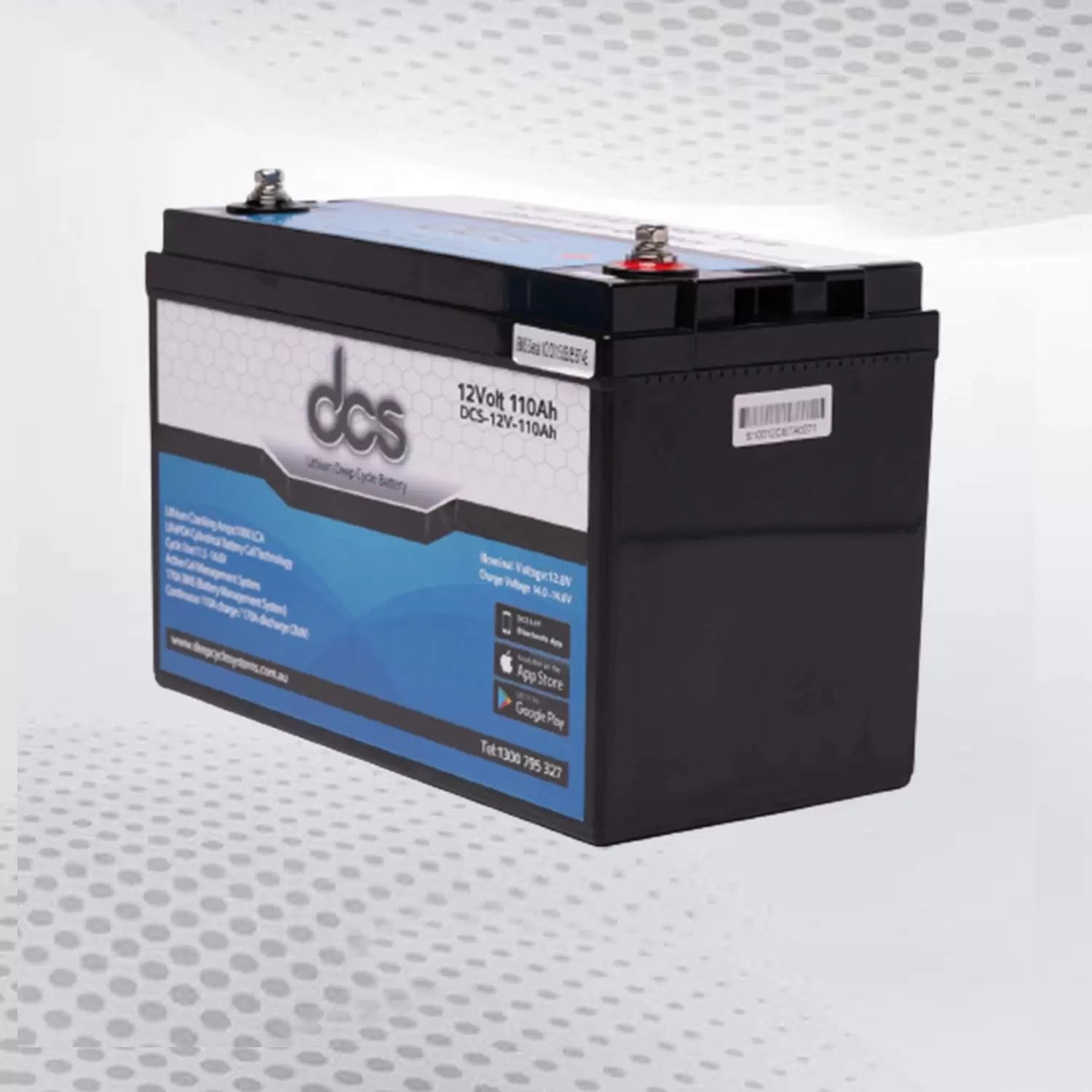

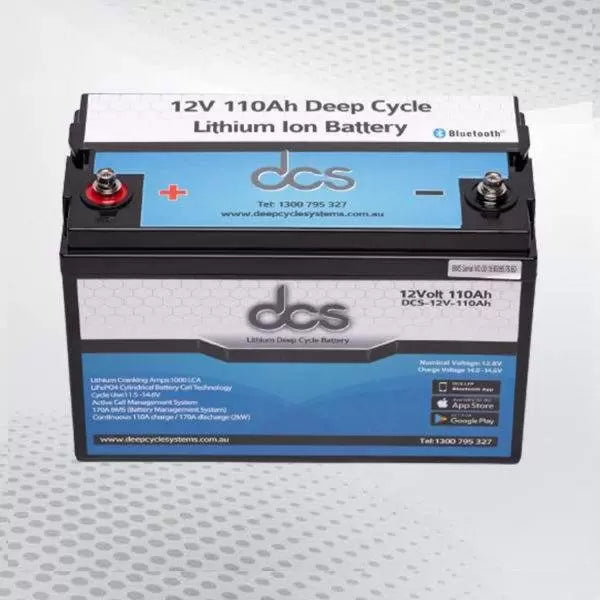

12V 110AH Lithium Ion Battery | Deep Cycle | Engine Starting
DCS Batteries are the ideal drop in replacement & upgrade from AGM, Gel or other lead acid batteries for any application. DCS gives you the ability to upgrade your current batteries to lithium ion technology that can deliver a minimum of 2500 cycles and has tremendous advantages in weight, performance, reliability and service life compared to that of traditional lead acid batteries.
Backed by a 4 year replacement warranty.
FREE delivery to all major cities in Australia.
-------------------------------------------------------------------------------
DCS Batteries now feature our comprehensive Bluetooth System available on both Android and Apple operating systems that shows a lot of cool things.
- Cell status showing real-time cell balancing operation
- BMS MOSFET temperature (great info when you are winching or running a large inverting load or your trolling motor to know how hard you are pushing the electronics).
- SOC% estimate (using impedance tracking – the App learns the SOC after the first 10 cycles)
- Battery pack voltage and cycle count
- Amp meter – showing charge and discharge current
- Connectivity distance up to 10m
- Now there is no need to install battery monitors or shunts in boats, campers or vehicles. You have all the info you need at your fingertips.
- The SOC estimate is accurate on single batteries, the more batteries that are expanded in parallel, the less accurate the SOC becomes.
- This free application provides the perfect tell-tale about the battery packs’ state of health as it ages
- Assists installers & integrators to quickly diagnose any system issues
DCS 6AWG 230MM PARALLEL CABLES WITH M8 RING TERMINALS
| Specifications: | – |
|---|---|
| Nominal Voltage | 12.8V |
| Nominal Capacity (1Hr) | 110Ah |
| Case Dimensions (L x W x H) | 328mm x 171mm x 215mm |
| Weight | 13.3 Kgs |
| Cycling voltage | 11.5 ~ 14.6V |
| Charge voltage | 14.0 ~ 14.6V |
| Float Voltage | 13.5 ~ 13.7V |
| Maximum Charge Current | 100A |
| Recommended Charge Current | ≤70A |
| Maximum Discharge Current | ≤200A for 5mins
150A Continuous |
| DCS BMS (internal) | DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections |
| Cell Chemistry | DCS 3.2V 5.0 – 7.2Ah Cylindrical (LifePO4) |
| Cycle Performance | 2500 Cycles @ 100% DOD |
| LCA | 1000 |
| Ingress Protection | IP54 |
| Case | ABS (flame retardant plastic) |
| Operating temp Range | -30 to +110 degrees C |
| Terminals | Top Mount M8 Stainless steel / Copper |
| Parallel Connections Only | YES |
| Series Connections | No |
| Warranty | 4 years | 3 years under bonnet |
