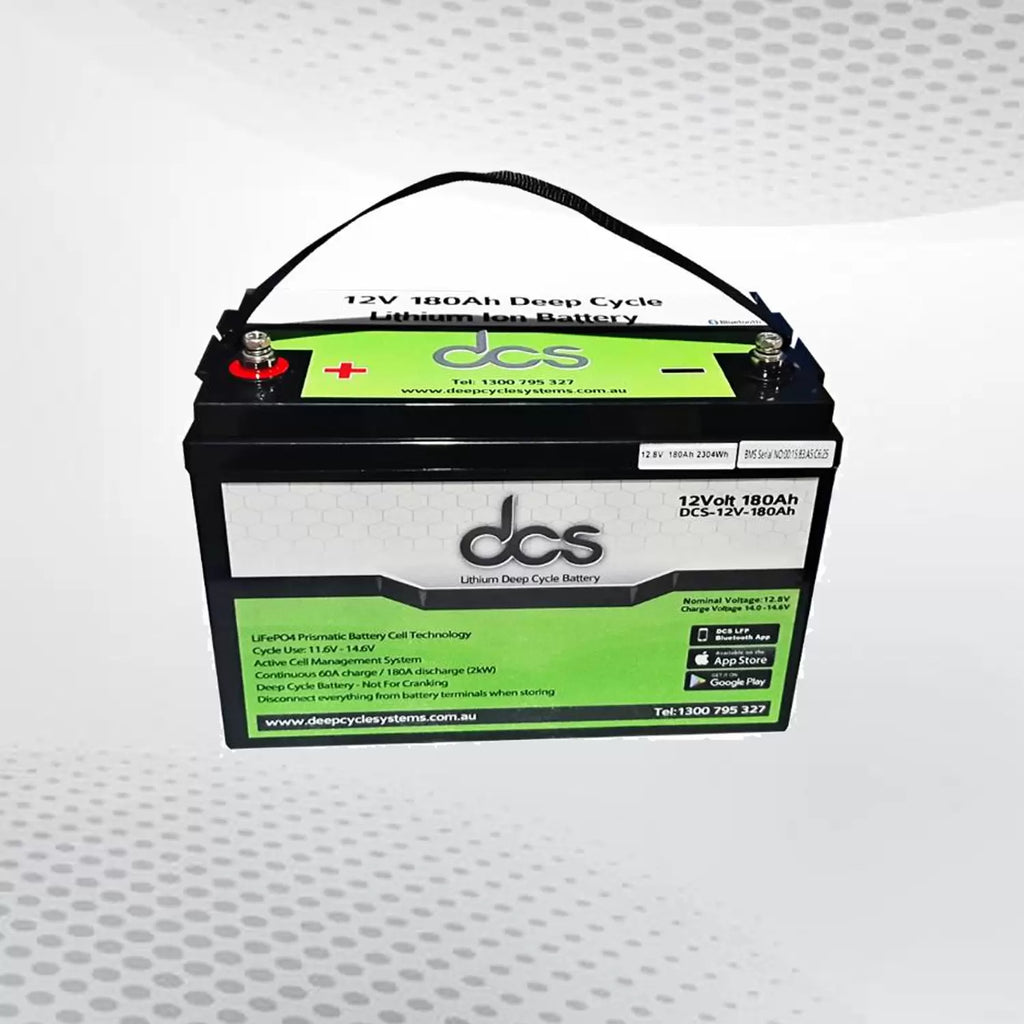

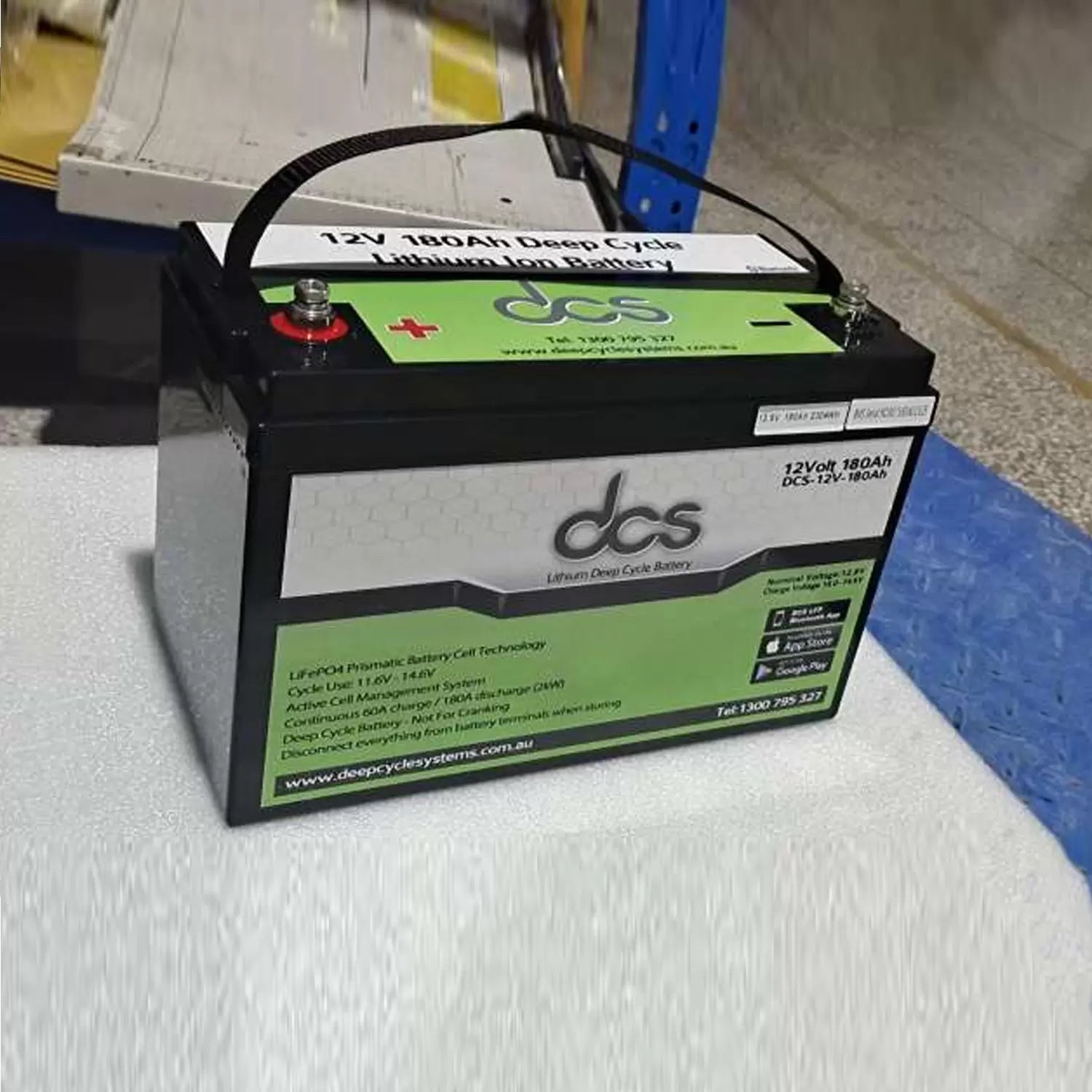

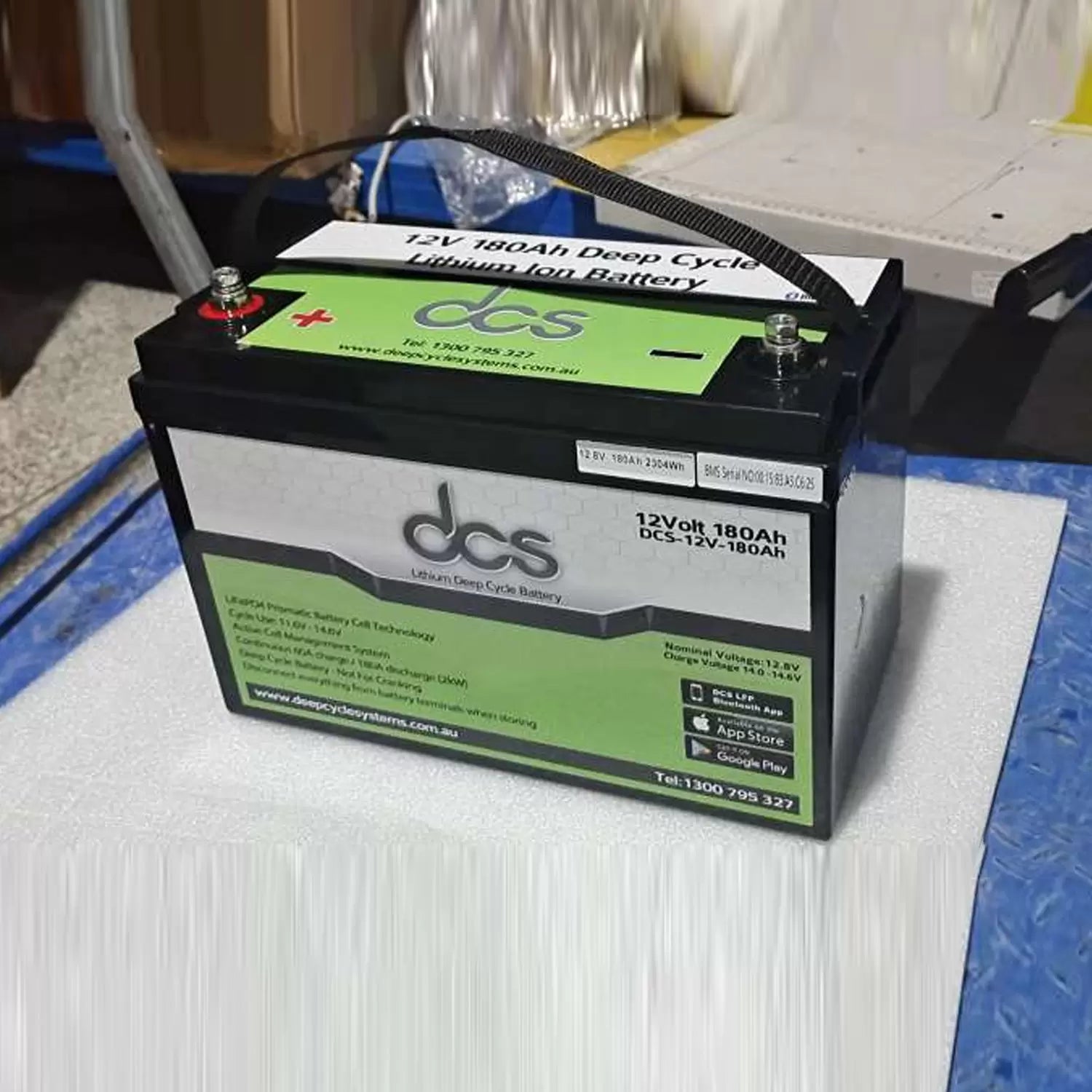

DCS 12V 180AH (LITHIUM) Deep Cycle Systems

Save $211.00
Deep Cycle SystemsSKU: DCS12V180Ah

Price:
Sale price$936.00 Regular price$1,147.00

Description

12V 180AH Lithium Ion Battery | Deep Cycle | Not For Engine Starting OR Engine Bays

DCS Batteries are the ideal replacement & upgrade from AGM, Gel or other lead-acid batteries for any application. DCS gives you the ability to upgrade your current batteries to lithium-ion technology that can deliver a minimum of 2500 cycles and has tremendous advantages in weight, performance, reliability and service life compared to traditional lead-acid batteries.

Backed by a 5 year replacement warranty.


Battery terminal configuration only available in a LHP

FREE delivery to all major cities in Australia.

-------------------------------------------------------------------------------



NOT SUITABLE FOR ENGINE CRANKING OR ENGINE BAYS


Specifications:
Nominal Voltage 12.8V
Nominal Capacity (1Hr) 180Ah
Case Dimensions (L x W x H) 328mm x 171mm x 215mm
Weight 18.0 Kgs
Cycling voltage 11.6 ~ 14.6V
Charge voltage 14.0 ~ 14.6V
Float Voltage 13.5 ~ 13.7V
Maximum Charge Current 60A
Maximum Discharge Current 180A Continuous
DCS BMS (internal) DCS active cell management system, over/under voltage, over current charge/discharge, low/high temperature protections
Cell Chemistry CALB (LifePO4)
Cycle Performance 2000 Cycles @ 100% DOD
Ingress Protection IP54
Case ABS (flame retardant plastic)
Operating temp Range -20 to +60 degrees C
Terminals Top Mount M8 Stainless steel / Copper
Parallel Connections Only YES
Series Connections No
Warranty 5 Years (not suitable for engine bays)
Certifications

UN 38.3, UL 1642, IEC 62133 & 62619, CE
