Description
- Design: Australian conditions
- Surface: Anti-slip
- Material: Black powder coated steel
- System: Self-locking
- Load Capacity: 80kg
- Slide Extended Length: 1853mm
- Compatibility: B085, B110, B150, DC60, DC62, DU280-DZ, DU295-DZ, DU75-DZ, DU95-DZ, E065, ED65, ED85, G61, G75, GFM070, GFM095, GLX-80-DZ, RFB110-FF, RFB85-FF, RFE60-FF, RFE82-FF, RV62-RR, RV75-RR, TMDZ-80, TMDZ-95, TMX65, XTM75.
These notes ensure that your EvaKool fridge slide integrates seamlessly with your existing setup, reflecting the true Australian spirit of adaptability and resilience.
- Please allow an additional 30mm to your total fridge height when using the fridge slide.
- RFE82-FF features a 170mm overhang due to the motor compartment.
- RFB110-FF features a 75mm overhang due to the motor compartment.
- For RFE82-FF & RFB110-FF, the bung end must be at the front of the fridge slide.
- For TMDZ80 & TMDZ95: If your fridge doesn’t have an Anderson style plug as standard and only has a regular 12V plug, you will need to raise the fridge to accommodate access to the 12V plug.
- The above suggested compatibility is for standard fibreglass builds only.
- Both Large and Small slides have an 80kg load capacity.
Specifications
| Capacity | 80kg |
|---|---|
| Dimensions |
External Size:
Internal Size (fridge tray):
|
| Warranty | 1 Year |
| Weight | 23kg |
What's in the box

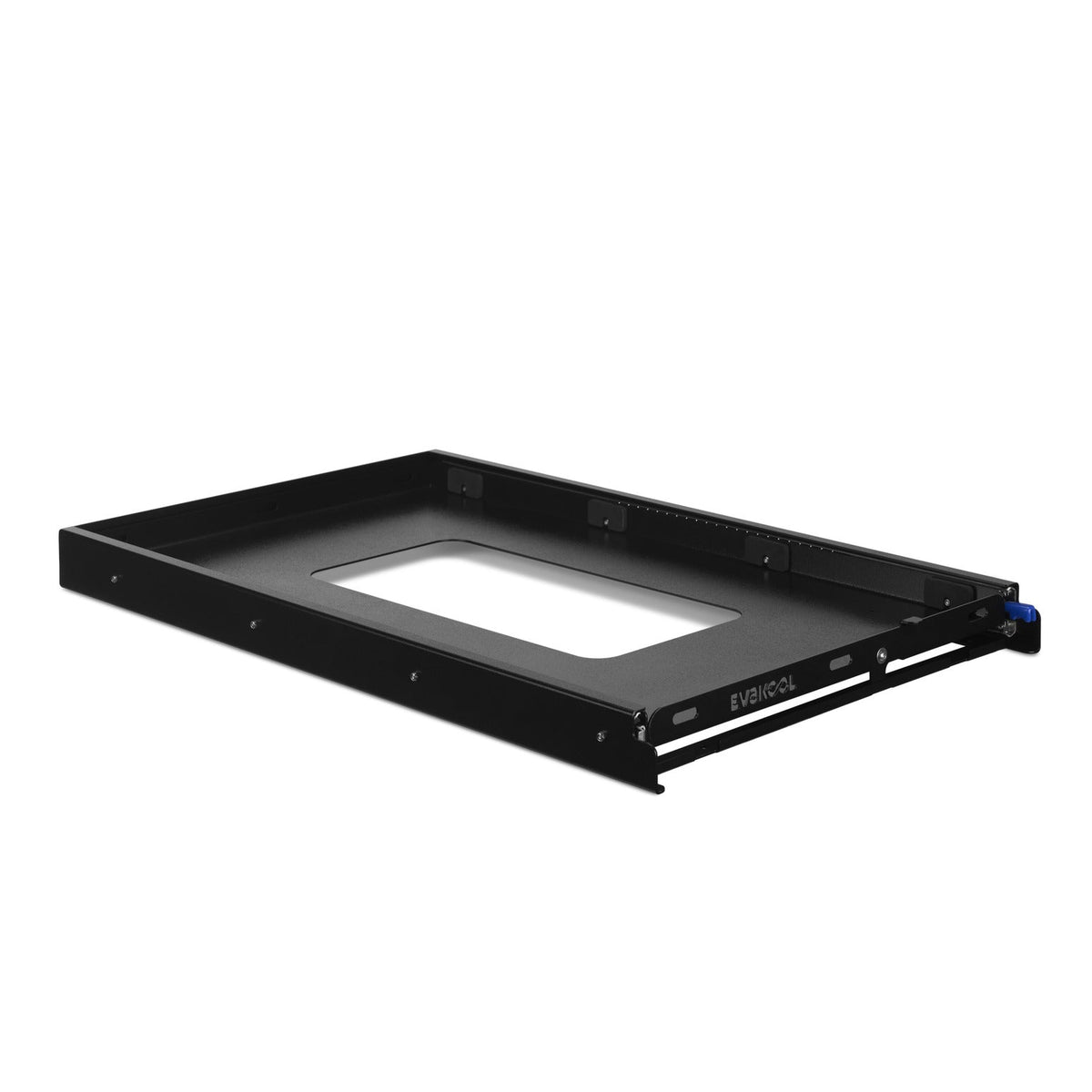

1x EvaKool Fridge Slide - Large

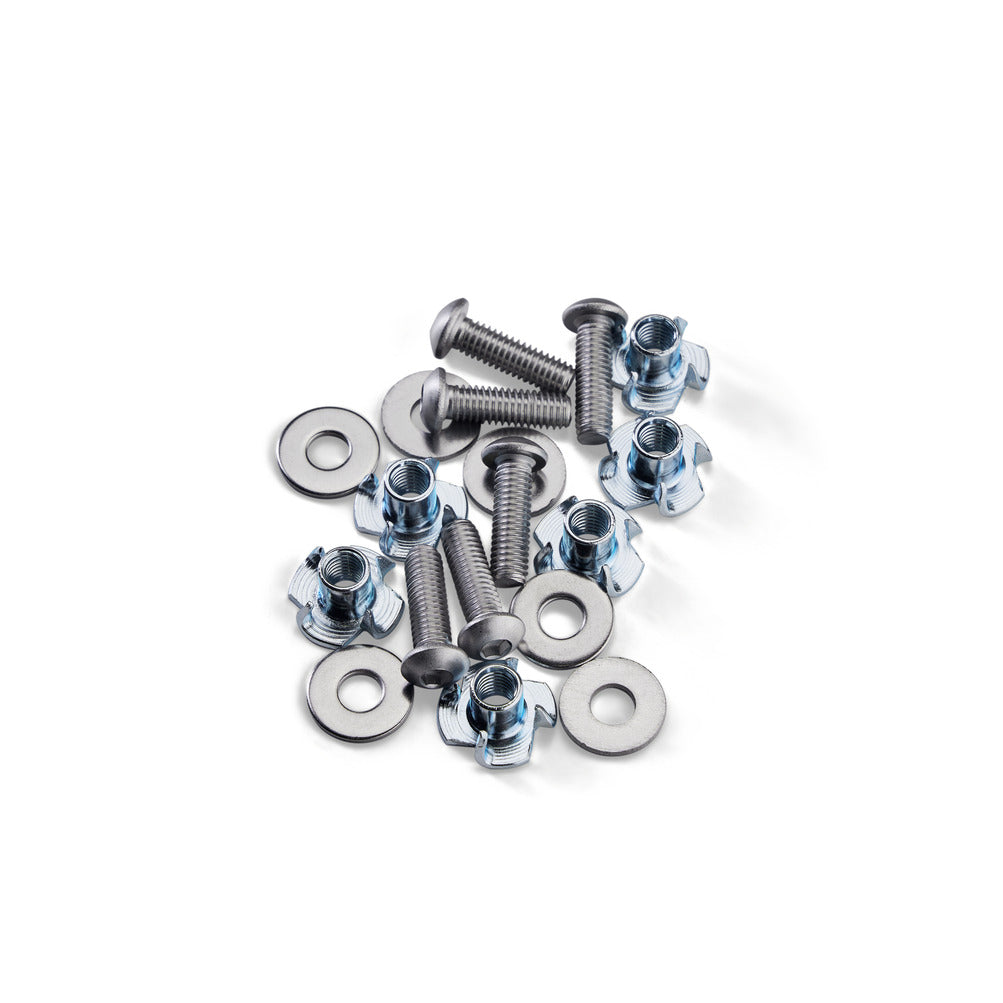

1x Hardware
1x EvaKool Fridge Slide Manual
