Description

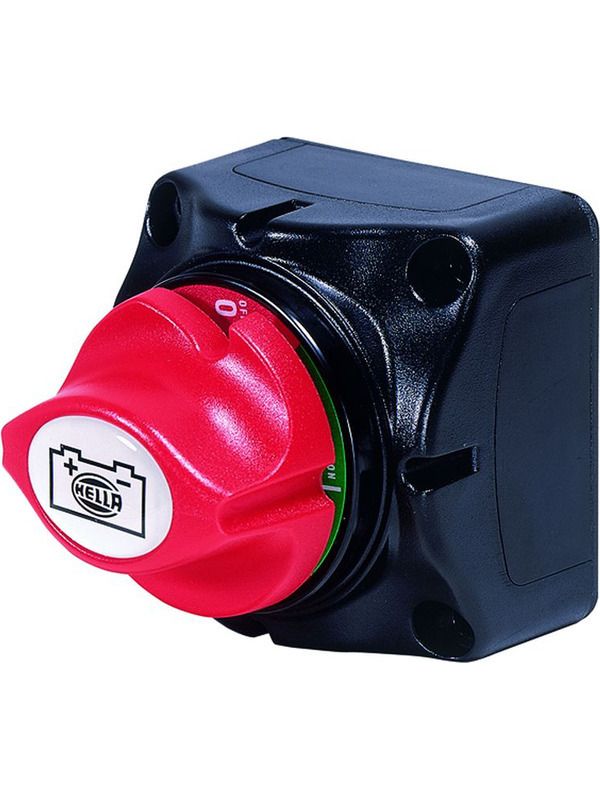

Hella 4640 275 Amp Battery Master Switch
This switch is suitable to be used as a master switch for your 12v or 25v winch. Especially good when running a big 24v setup in the back of the vehicle to isolate the heavy cables that are running to your winch.
Removable plates for connection from all sides allow the switch to be stand alone or locked together with other switches. The control knob can not be removed whilst in an ON or OFF position, however it can be removed by switching to an anti-clockwise 45" position. Suitable for surface or recess mounting into a 52mm diameter hole.
Material Description – Impact resistant plastic, Tin plated copper studs and nuts
Termination Stud Size – 2 × 10mm (3/4")
Operation- ON/OFF
Degree of Protection – IP 56
Max. Load 12/24V DC – Continuous 275 Amps, Intermittent 455 Amps (5 minutes) Cranking 1250 Amps (10 seconds)
Max. Voltage – 48V DC
