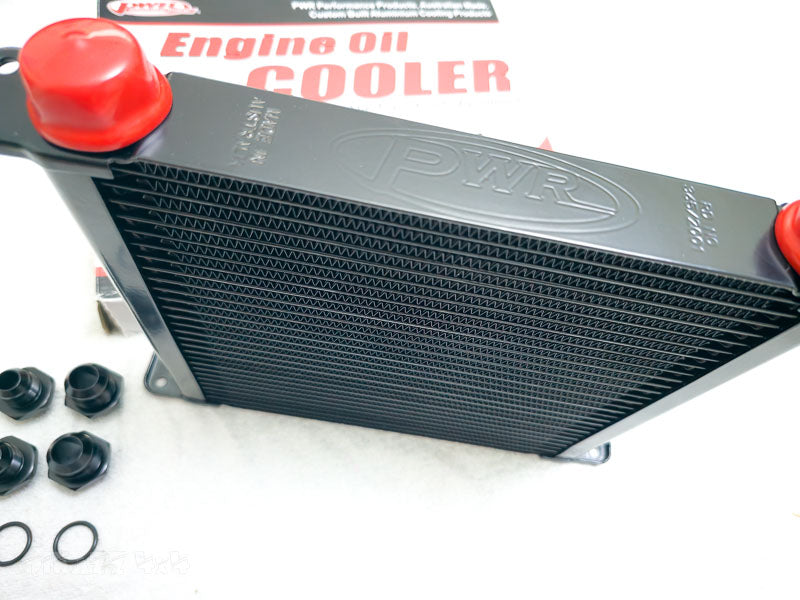

PWR Engine Oil Cooler - Plate and Fin 280 x 256 x 37mm (28 Row)

PWRSKU: PWO5933K

Price:
Sale price$290.00

Description

Modern engines run higher oil temperatures and rely on engine oil to assist the water system in cooling the engine. PWR’s patented plate and fin engine oil coolers are made from 100% aluminium construction which allows the cooler to be made strong, lightweight and compact while offering high heat transfer and powder coated for corrosion resistance. The plate design tabulates the oil flow and in conjunction with the unique louvered fin design provides unequalled heat rejection while offering very low-pressure drop. Manufactured with a 37mm core, these coolers are perfect for engine oil cooling, heavy duty automatic transmission cooling, power steering and differential cooling for race and road applications. All coolers come standard with Dash -10 AN & Dash -12 AN male adapters with Dash -6 AN & Dash -8 AN being alternative options. Custom versions can be special ordered with thermo fan mounts with or without thermo switch bosses.

  • Universal fitment for easy installation
  • Powder coated black for corrosion resistance
  • High heat transfer
  • Low pressure drop
  • Start of the art controlled atmosphere brazing process
  • Pressure tested and guaranteed (600psi burst rating)
  • 1 Year manufactured warranty
  • 100% Australian made

SPECIFICATIONS

  • Aluminium
  • Powder Coated Black
  • 280 x 256 x 37mm
  • Plate and Fin
  • Universal Fitment

WHAT'S INCLUDED

  • 1 x Universal Engine Oil Cooler
  • 2 x -10 ORB to -10AN Male Fittings
  • 2 x -12 ORB to -10AN Male Fittings
  • 2 x Rubber O-rings

COMPATIBILITY

  • Universal H'duty

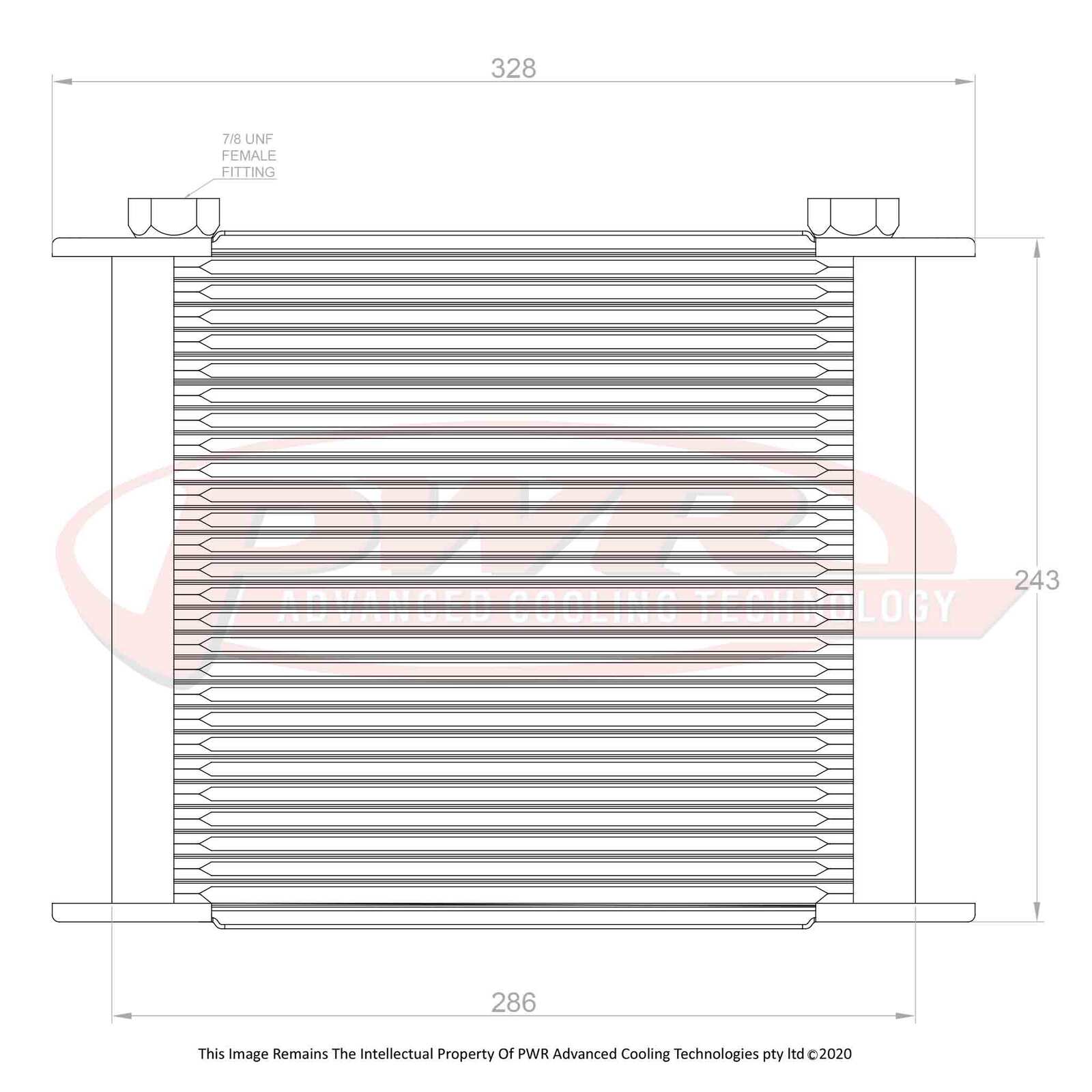

Download Drawing

We are also recommending these for trans coolers on the Nissan Patrol to BMW M57 conversion when going with the ZF auto.
