Description
The Renogy 40A Rover MPPT Charge Controller is the most efficient type of charge controller. With up to 99% tracking efficiency, the Rover ensures maximum power point solar charging that gets more energy to your battery bank. Capable of automatically detecting 12V/24V lead acid battery systems, this crucial component is preset to also work with Gel, Flooded (wet cell), and Sealed batteries（manual setting is required for 24V Lithium battery）. When paired with the Renogy BT-1 Module and DC Home app you can view system performance in real-time and make parameter changes without having to get up!
Key Features

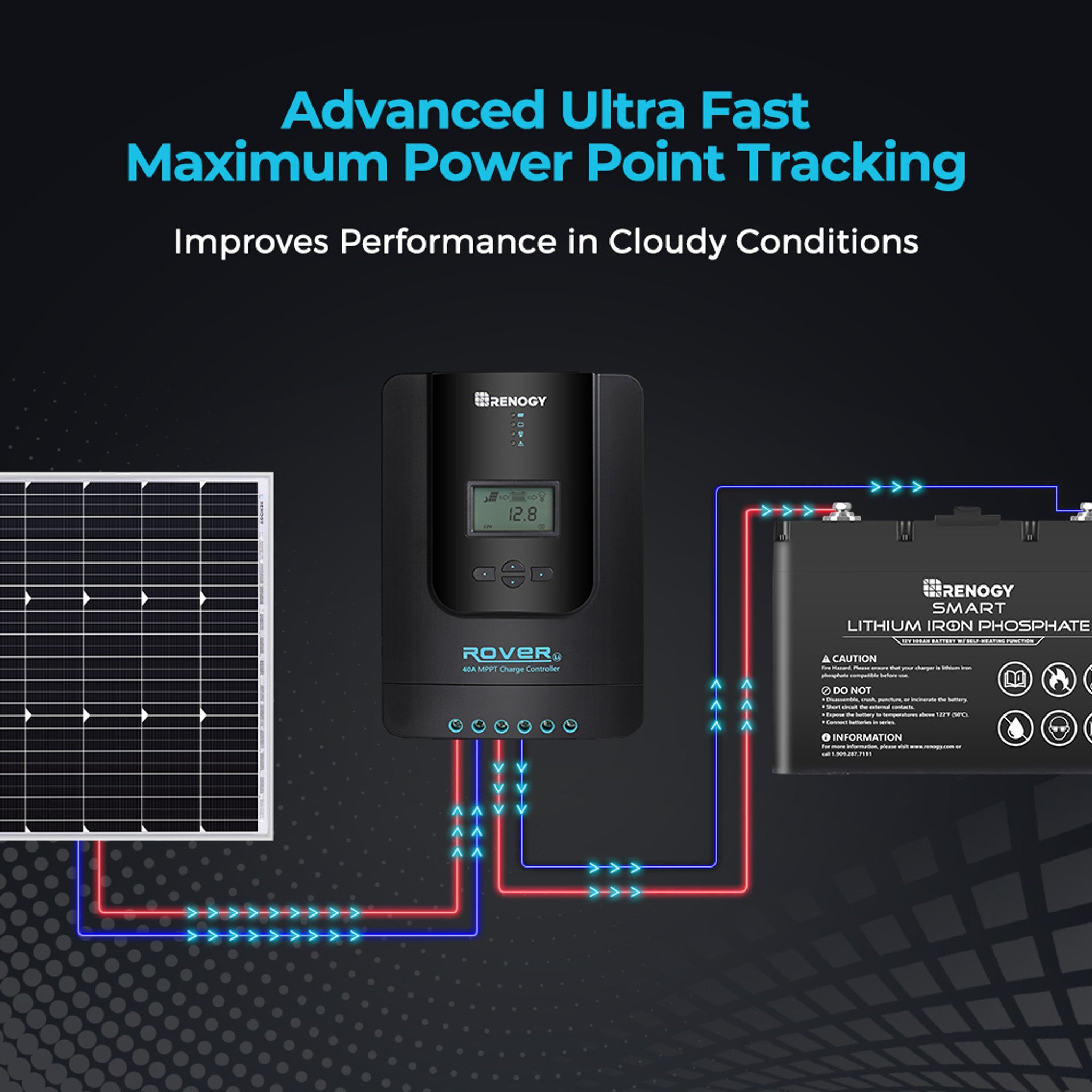

- Innovative MPPT Design
Die-cast aluminium design ensuring excellent heat dissipation and Renogy Maximum Power Point Tracking technology with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It is the best charging solution even in cloudy environments where the max power point of the solar panels will fluctuate all day.
- 12V/24V Automatically Detect
Automatically detects 12V or 24V DC system voltages (for Non-Lithium battery types), and the LCD screen and multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes

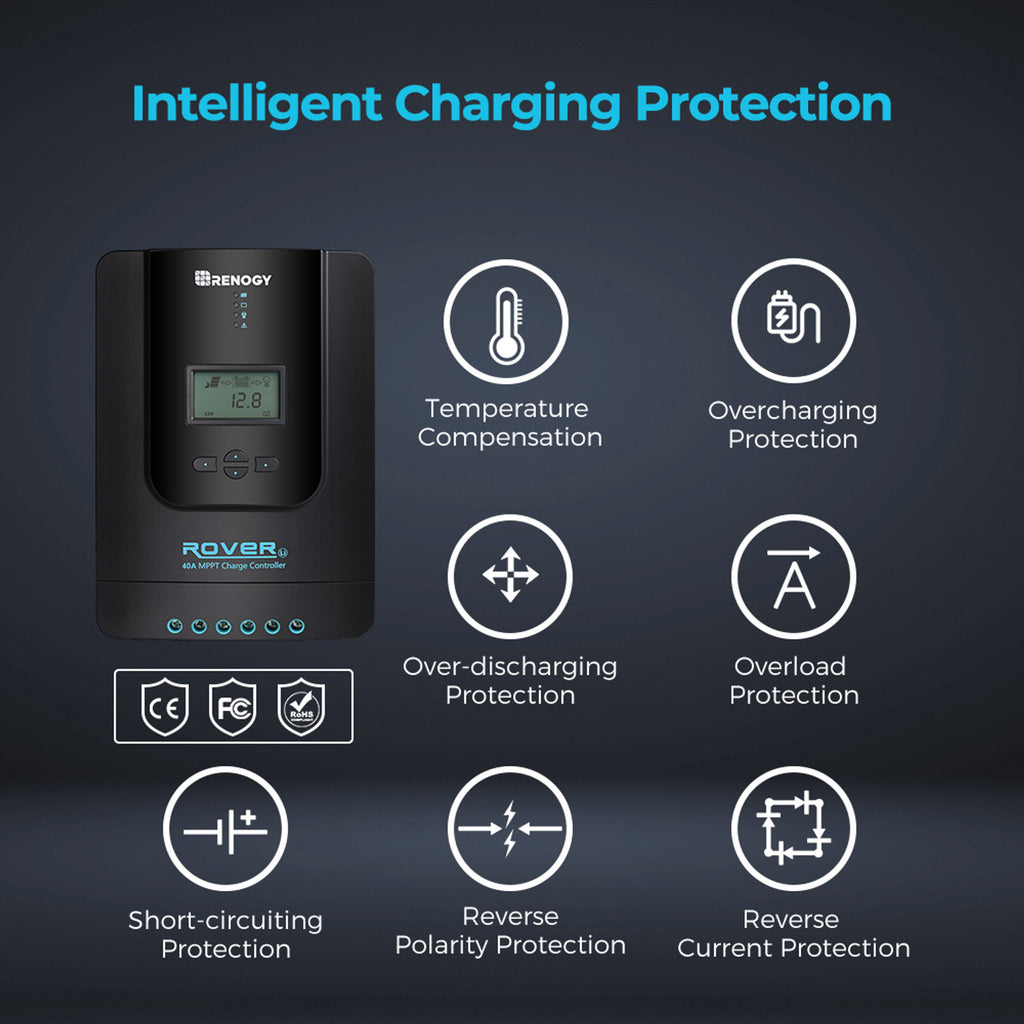

- Full System Protection
Meant to safeguard your system, the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery over-discharging, overload, short-circuiting, and reverse current.

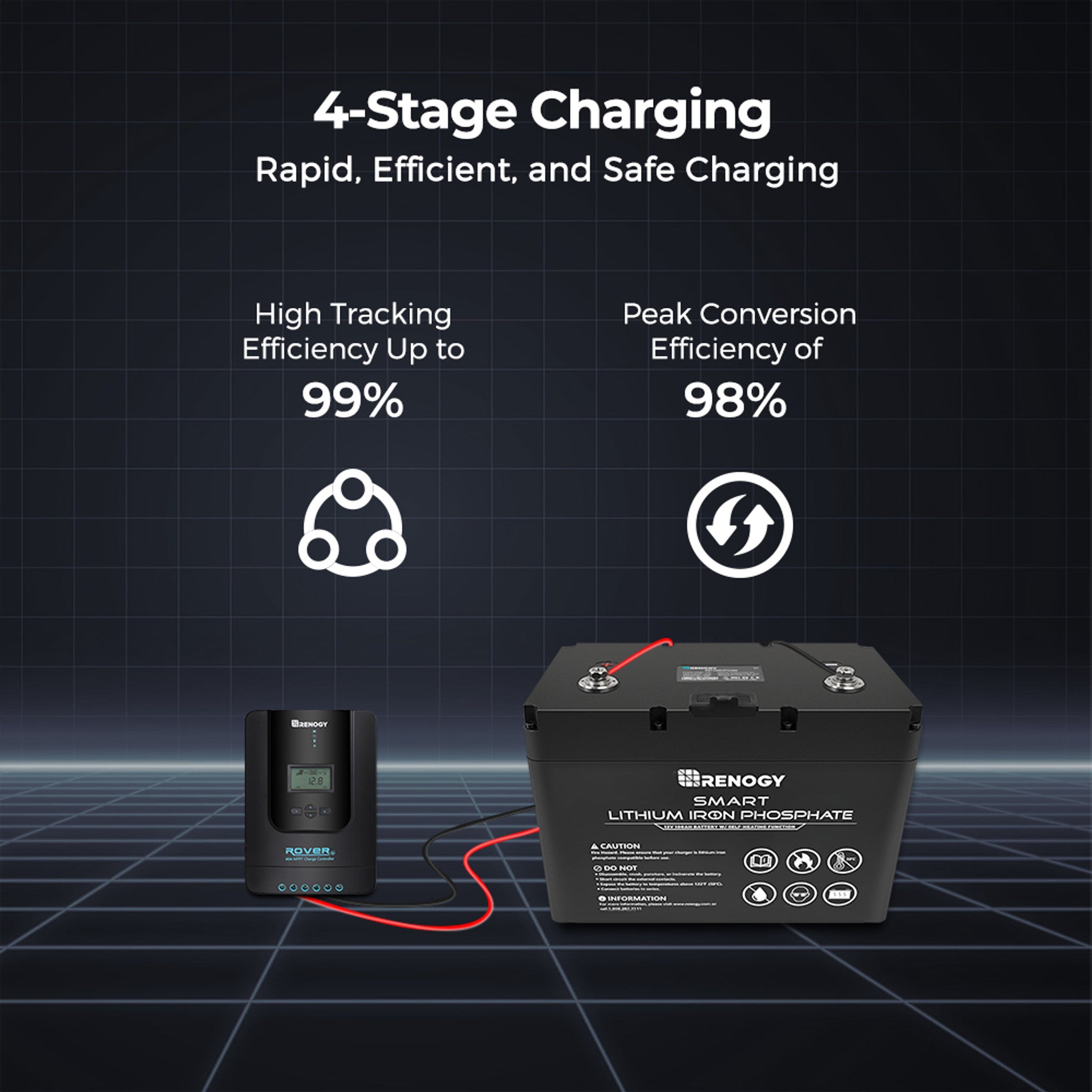

- 4-Stage Safely Charging
Features 4-stage charging (Bulk, Absorption, Float, and Equalization) of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for Lithium batteries as well as Lithium Reactivation
- Diverse Load Control

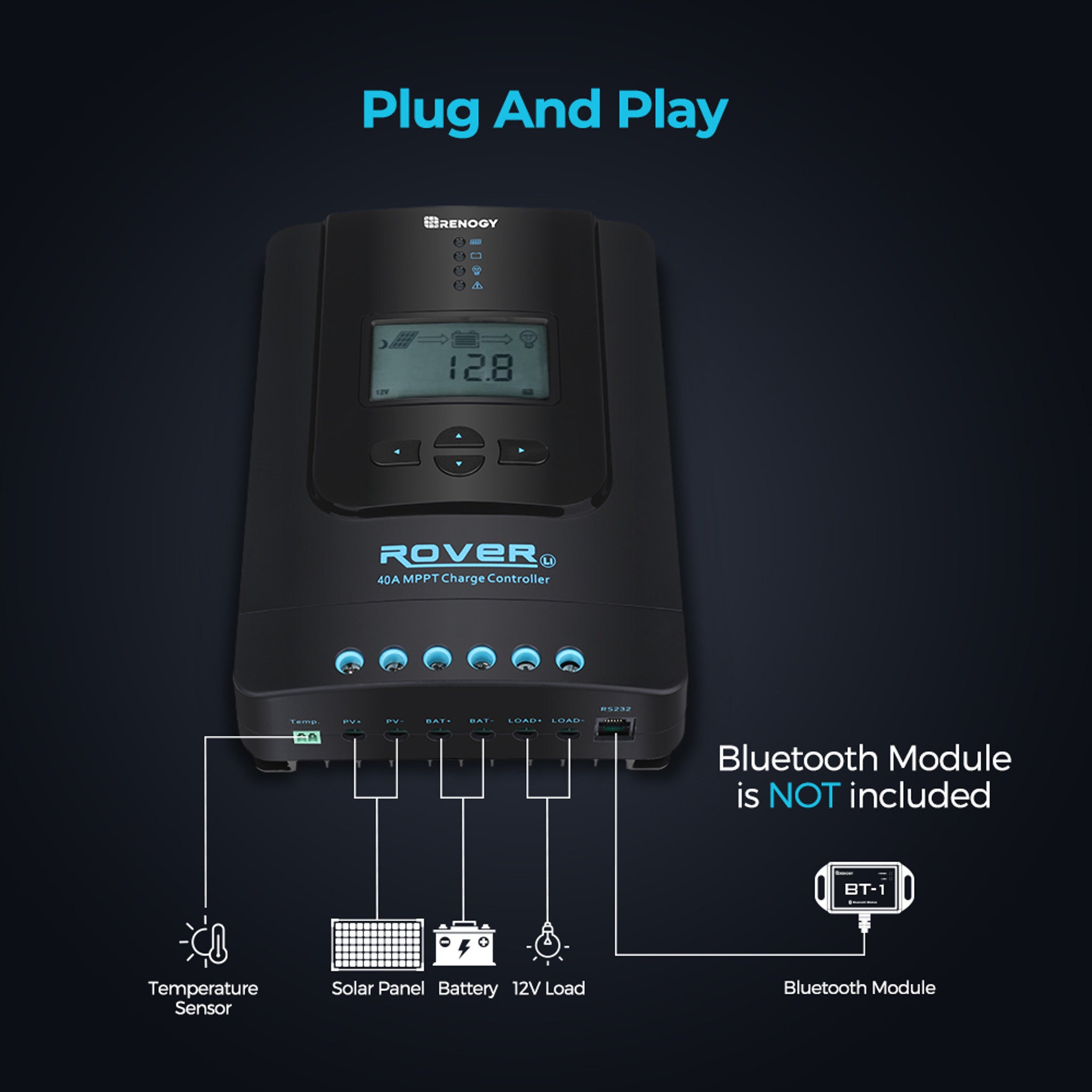

Connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the controller
- Remote Monitoring
RS232 communication port allows the Renogy Rover to communicate with the Renogy BT-1 Bluetooth module (NOT included in the package, highly recommend to add-on ) that will enable you to monitor the status and productivity of your panels through the Renogy DC Home App.
DOWNLOAD LINKS
Package Includes
|
Rover Li 40 Amp MPPT Charge Controller
1 x
|
Remote Temperature Sensor
1 x
|
|
Options: BT-1 Bluetooth Module
1 x
|
Specification
| Rover 40 Amp MPPT Solar Charge Controller | |
|---|---|
| Nominal Voltage: | 12/24V Auto Recognition |
| Rated Charge Current: | 40 A |
| Max. PV Input Power: | 12V/520W, 24V/1040W |
| Max. PV Input Voltage: | 100 VDC |
| Self-Consumption: | < 100mA/12V; < 58mA/24V |
| Equalization Voltage: | Sealed:14.6V; Flooded: 14.8V; Gel: N/A; Lithium(LFP): N/A |
| Float Voltage: | Sealed:13.8V; Flooded: 13.8V; Gel: 13.8V; Lithium(LFP): N/A |
| Boost Voltage: | Sealed: 14.4V; Flooded: 14.6V; Gel: 14.2V ; Lithium(LFP): 14.4V |
| Operating Temperature: | -35°C to 45°C; -31°F to 113°F |
| Temperature Compensation: | -3mV/°C/2V |
| Dimensions: | 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in |
| Weight: | 4.4 lbs / 2.0 kg |
| Enclosure: | IP32 |
| Terminals: | Up to 8 AWG |
| Remote Temperature Sensor Cable Length | 3m |
| Options: BT-1 Bluetooth Module | |
| Communication Protocol: RS232 | Port Type: RJ12 |
| Input Voltage: 12V | Protection Grade: IP54 |
| Standby Power Consumption: 0.04W | Operating Power Consumption: 0.05W |
| Communication Range: ≤82ft | Serial Baud Rate: Fixed Baud Rate 9600bps |
| Cable Length: 5.00 m (16.4 ft) | Dimensions: 2.65 X 1.38 X 0.55 in (67.3 X 35 X 14 mm) |
| Operation Temperature: -20℃~85℃（-4°F to 185°F） | Weight: 130g (4.58oz) |
| Certifications： | |
| CE | Yes |
| FCC Class B Part 15 Compliant | Yes |
Warranty Information
| Material and workmanship warranty | 2 Year |
