Description
!!! FREE FREIGHT !!!
NEW Version 3
- Made from 10mm SS41 carbon steel plate
- Direct bolt onto your chassis using high tensile bolts - no cutting or welding required
- Powder coated yellow for high visibility
- Matched pair - specific to each side
- Allow for use of 4.7T bow shackles and a bridle strap
- Rated to a Working Weight Limit (WWL) of 5000 Kg per tow point
- Elongated hole for mounting of bow shackle
To suit:
-
To suit:
- Holden Colorado RG 2012-2020
- Holden Colorado 7 2012-1016
- Holden TrailBlazer 2016-2020
- Isuzu DMAX 2012 - 2020
- Isuzu MUX 2012-2020

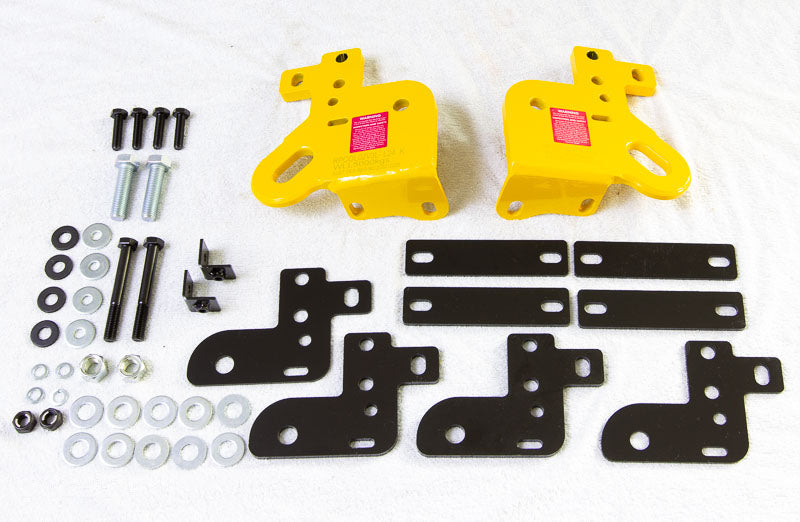

This kit comes complete with the following items.
- 2 x Tow Points
- All Bolts, plates, washers etc as required
Fitting Instructions can be found here.
Always demand genuine Roadsafe Rated Recovery Tow Points! Roadsafe Rated Recovery Tow Points are FEA Tested during design and Destruction tested during development to establish Working Load Limits.
Rated Recovery Tow Points have been designed as matched pairs, supplied in LH/RH for vehicle specific fitment. Your purchase will include high tensile bolts and any additional vehicle specific mounting hardware required to ensure secure fitment to vehicles. Correct fitment of these components is critical for your and others personal safety.
Each pair of Rated Recovery Tow Points is supplied with vehicle specific fitment instructions. These instructions should be followed during fitment to ensure all steps are taken for correct installation, so when required, the points will be at their optimum Working Load Limit (WLL) as stamped. Rated Recovery Tow Point fitting instructions can be found here.
Always use Rated Recovery Tow Points as a matched pair with an equalising bridle. Failure to use Rated Recovery Tow Points correctly can result in Rated Recovery Tow Point fatigue and bending and voiding your warranty. Never use a single point combined with a side load/pull.
The Rated Recovery Tow Points are easy to install. Check out this video of a quick installation of the RP-COL02 points to a RG Colorado. It is recommended that Rated Recovery Tow Points are fitted by a qualified mechanic with specialist 4WD knowledge who understands your vehicle, including weights carried, the style of Bull Bar, general usage, etc. In some circumstances, these Rated Recovery Tow Points may not be suitable for your vehicle. Incorrect selection or incorrect installation is not covered by warranty.
Rated Recovery Tow Points have been designed on vehicles without Bull Bars. In some circumstances, the bull bar mounting bolts/brackets may utilise the same chassis holes that are utilised for Rated Recovery Tow Point fitment. Most of the time, there is a fix around this - however, in some instances where Bull Bars have been fitted, it precludes the opportunity to fit the Rated Recovery Tow Points without major modifications. Where possible, we maintain a list of Bull Bar fitments which can be found here.
Additionally, if a bull bar is fitted, modifications might be required to the bar bracket, and additional hardware might be required (longer bolts etc.) To facilitate fitment. As there are so many combinations and potential bar model combinations, we are unable to include every potential bolt required in the kit – this would make the kits ridiculously expensive. We have supplied the kits with the bolt options identified to suit the majority of applications. Unfortunately, if your vehicle/bar/Rated Recovery Tow Point combination falls outside of those applications, you will have to purchase additional bolts (from a local bolt barn or similar) to suit your required application. We recommend grade 8.8 or higher and tightening to appropriate bolt torque specs.
It is the Rated Recovery Tow Points themselves as supplied that have been tested to the WLL advised. It is at the vehicle owner’s discretion for fitment, ensuring that the chassis is adequately designed, constructed and rated to suit this application.
These Rated Recovery Tow Points have been designed and tested for straight-line pull. The Rated Recovery Tow Points have not been tested for lifting purposes and should not be used for lifting. The forces applied to differ between lifting and straight-line pull-type recoveries. Rated Recovery Tow Point compatible with RG Colorado/Colorado7/Trailblazer/D-max/MU-X 2012-2020 - Pair
