Stedi Plug & Play High Beam Driving Light Wiring Smart Harness™ - Dual Output

StediSKU: WIRQKFT-SMART

Price:
Sale price$37.00

Description

!!! FREE FREIGHT !!!



Universal Quick Fit SMART Harness - High Beam triggered.

DETAILS

Dual Output Quick Fit SMART Harness | Our all-in-one wiring loom

Our all new Plug & Play SMART Harness™ for Quick Fit installation of your driving lights. Incredible High Current 10AWG cable, negative switch compatible, waterproof switch & DTP to DT Reducers bridging the compatibility between the two connector types. Our SMART Harness™ has been designed around the consumer to simplify the installation process.

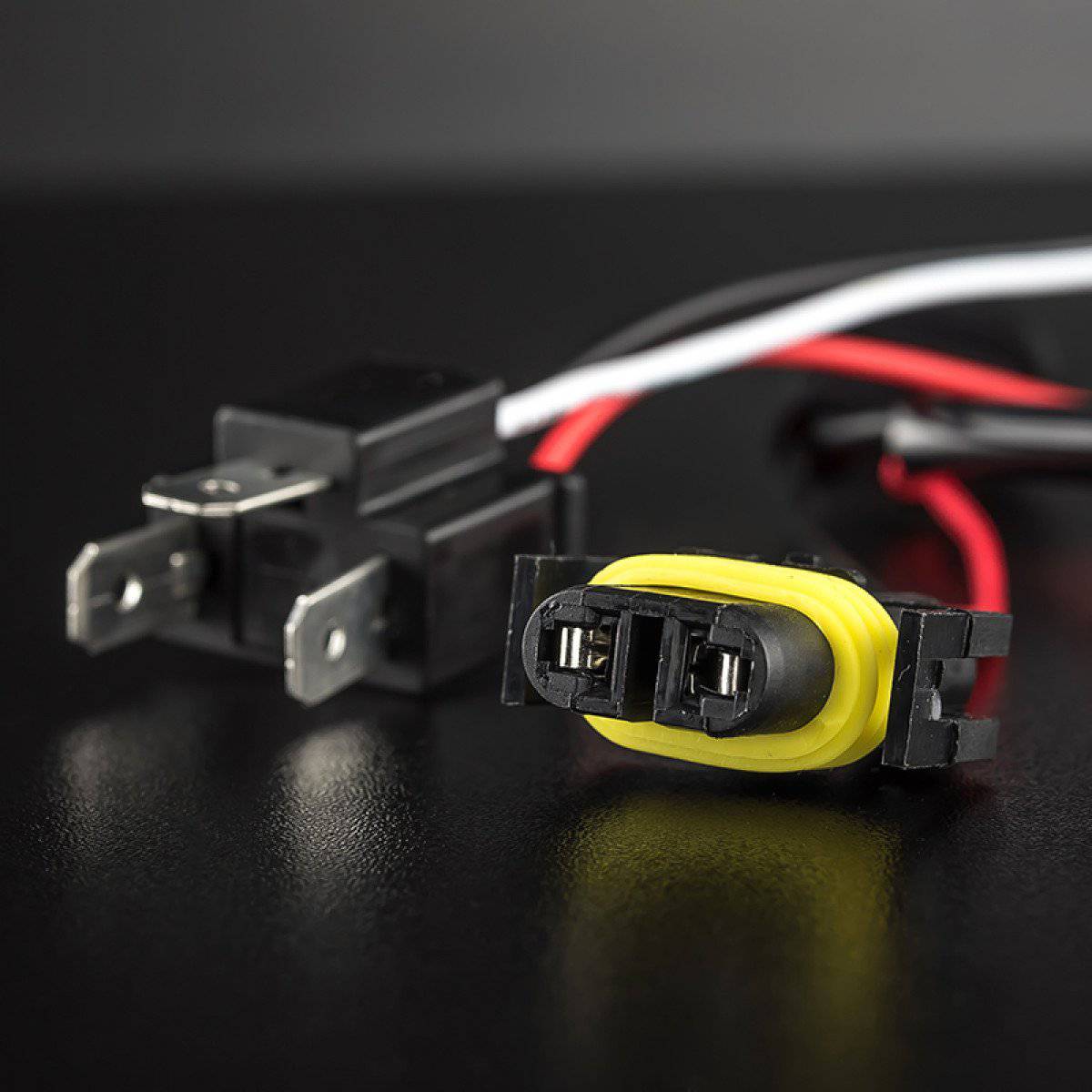

The supplied HB3 and H4 Adapters trigger your driving lights from your high beam without cutting or soldering any wiring.  Simply unplug your HB3 or H4 connector at the back of your head lights bulb, plug in our adapter and you're done! Driving lights will only trigger from high beam, and the switch will act only as an isolator.

Our new SMART Harness™ has built in micro-processor that automatically detects whether your system is positive or negative switched, and will work right out of the box without any modification whatsoever. Toyota's, Ford Ranger, Mazda BT50 among many other popular 4x4 are notorious for being very difficult and costly to wire driving lights to high beam, our quick fit harness takes all the guess work out of it.

Contains everything you need to get your lights connected:  ON/OFF Switch, 40A Relay, 35A Fuse, ribbed cable protectors, heat shrink wrapped relay, DTP to DT Reducers.

  • Featuring a total 4.8 meters of wiring (full stretched out)
  • 2.4m of cabling from Relay to Switch
  • 2.0m of cabling from Driving Light connector to Relay
  • 2.0m from H4 or HB3 Adapter to Relay
  • Total cable length 6.4m

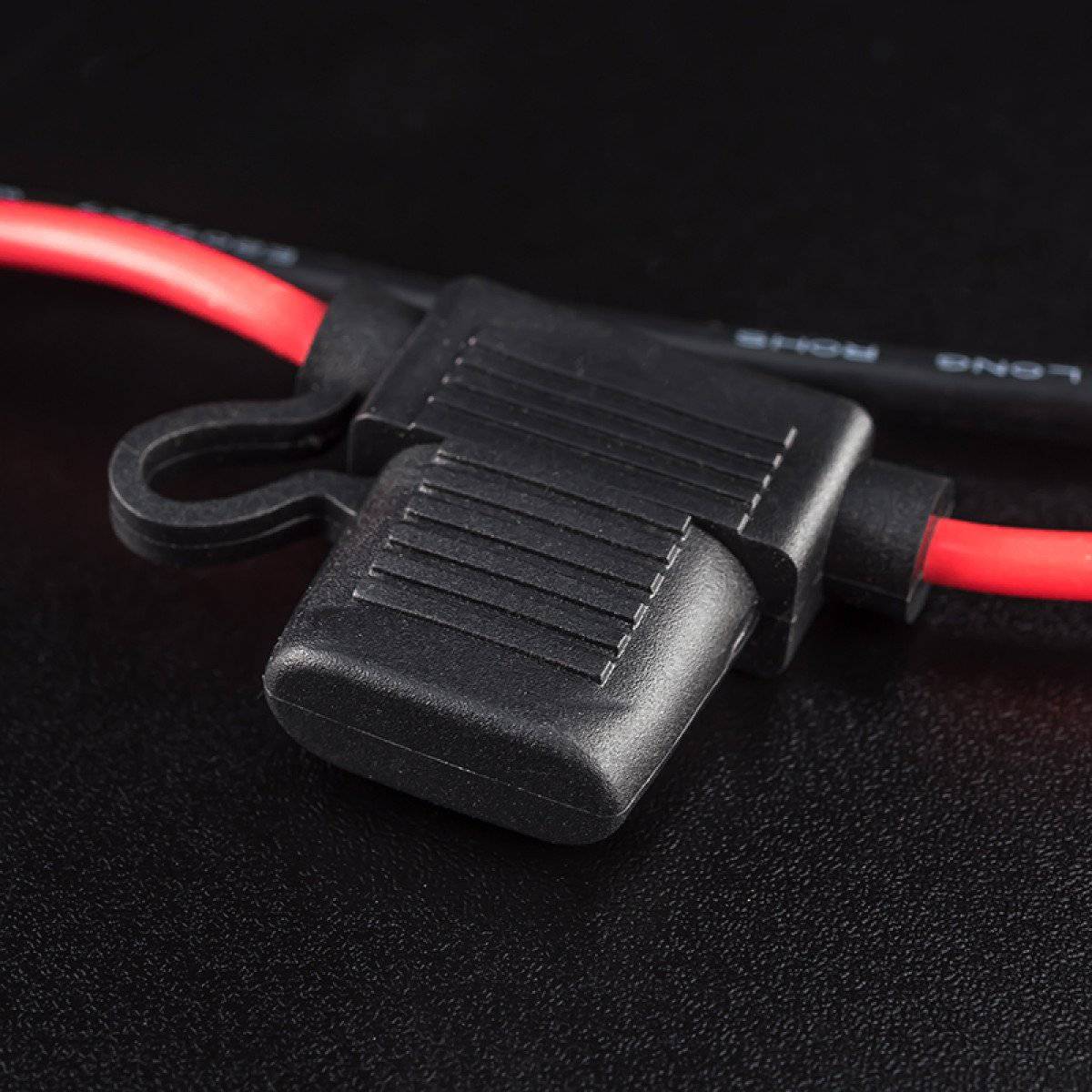

  • 12vDC 35A Rated Fuse Kit
  • 12vDC 60A Switching Relay
  • Push Button ON/OFF Switch
  • UV Rated Insulation
  • Instruction included.

HB3 & H4 are the most common wiring connects found in most popular makes and models. In the event that your car does not use H4 or HB3, this wiring harness can still be used to connect to high beam. We also sell separately H1, H9 & H7 piggy back adaptors.



SPECIFICATIONS

WIRING RATING 12vDC 40A
RELAY RATING 12vDC 60A
FUSE 35A
CONNECTOR DT & DTP
INSTRUCTIONS Included
MAX LOAD 35A @12v
INCLUDED PIGGY BACK HB3 & H4

WHAT’S IN THE BOX

  • 1 x STEDI SMART Harness
  • Dual Output with DTP connector

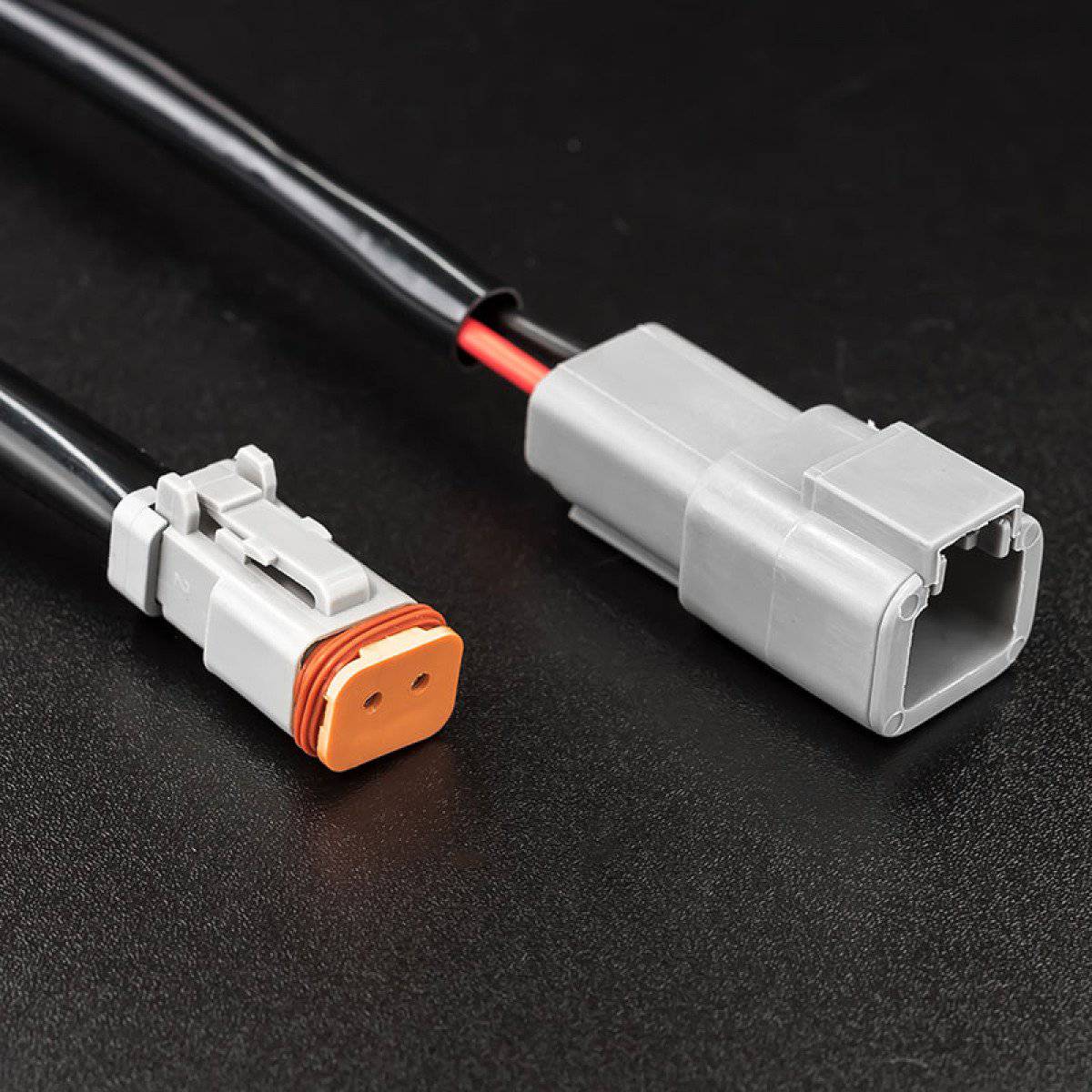

  • DTP to DT Reducers
  • HB3 + H4 Piggy Back Adaptors
  • Waterproof Switch
  • Instruction Leaflet
