TYPE-X ™ PRO Registered Design Number 201814836
1.15KM BEAM DISTANCE
THE PRO STANDARD
You only need one glance to realize that the sky was the limit when designing the STEDI TYPE-X ™ PRO (Registered Design Number 201814836 & Registered Trademark)
Back in 2016, we released the original Type-X™ and completely disrupted the high performance driving light market. If you haven’t heard about the legendary reputation of V1.0 TYPE-X™, start by checking out the Youtube comparisons. With the introduction of our PRO Edition, we are yet again redefining the auxiliary driving light category. Our all-new Type-X™ PRO edition epitomizes our commitment to maximizing light output and reliability at levels that surpass the most respected players in the industry.
1.15KM BEAM THROW
Using the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly-functional beam pattern. No doubt the attention grabber is the unrelenting beam distance of 1.155km, however, the real strength of our Type-X™ PRO is in mid to long-range light distribution that really sets it apart. An astonishing beam throw coupled with a homogeneous wide beam will have you insist on driving only when the sun's down.
YOUR LIGHTS YOUR WAY.

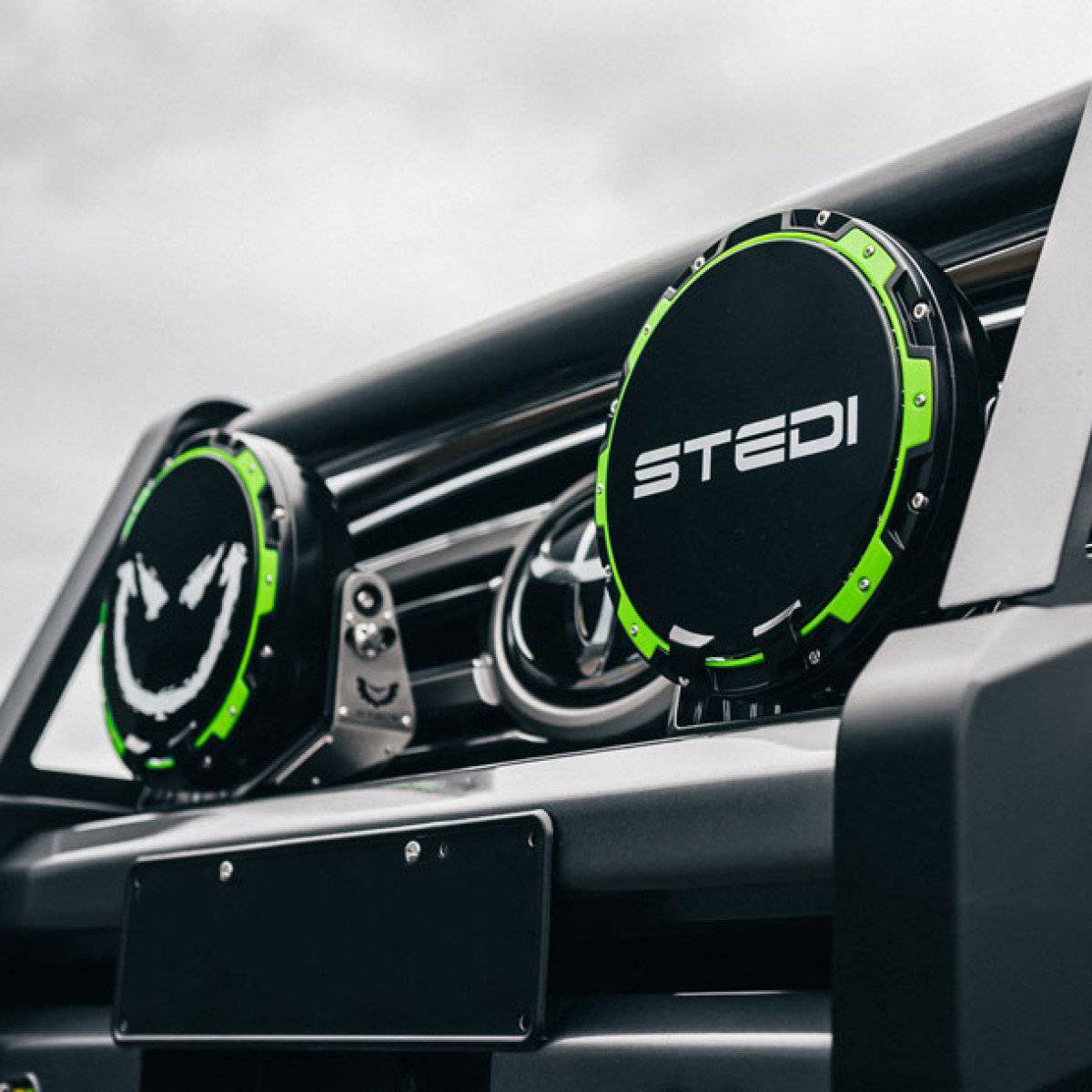

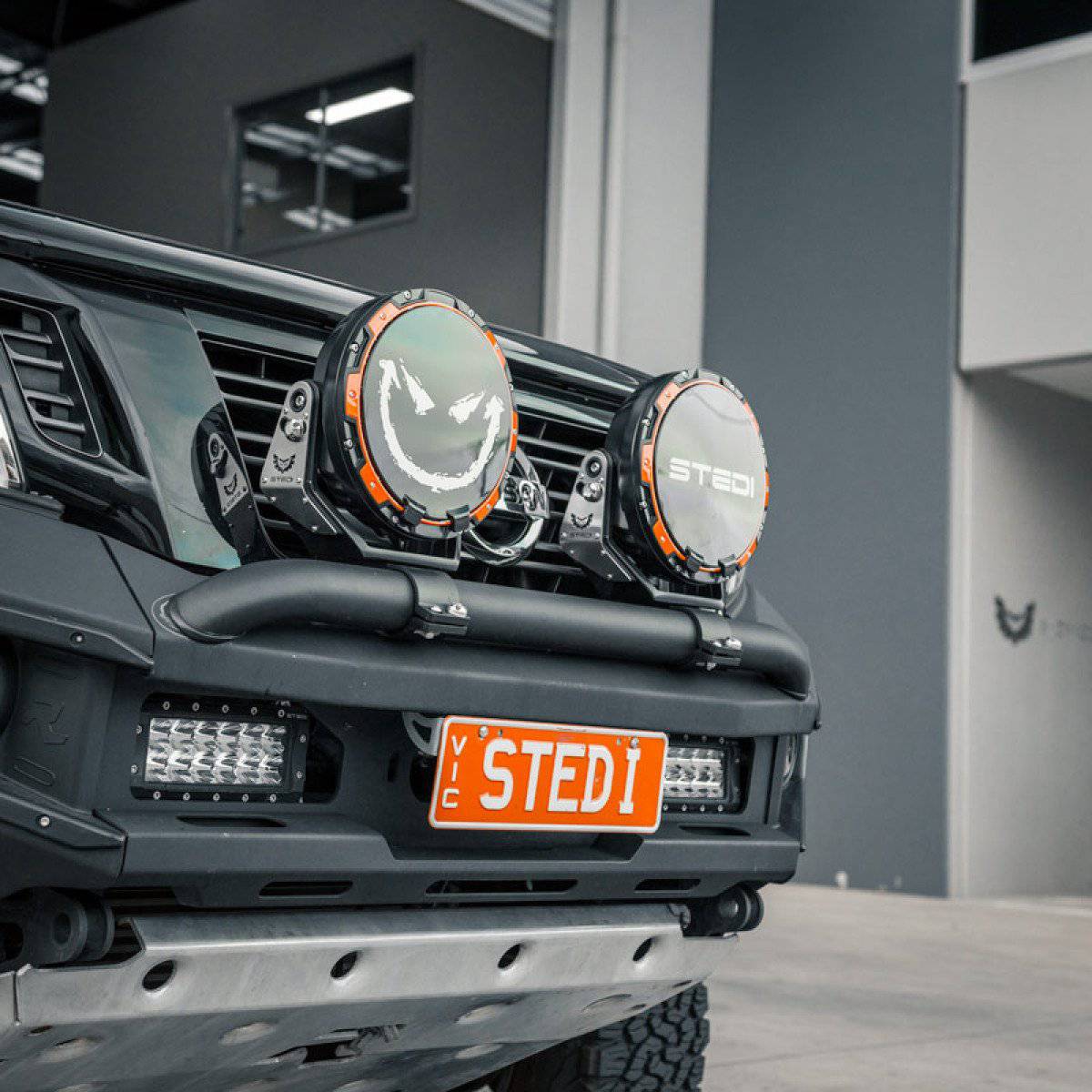

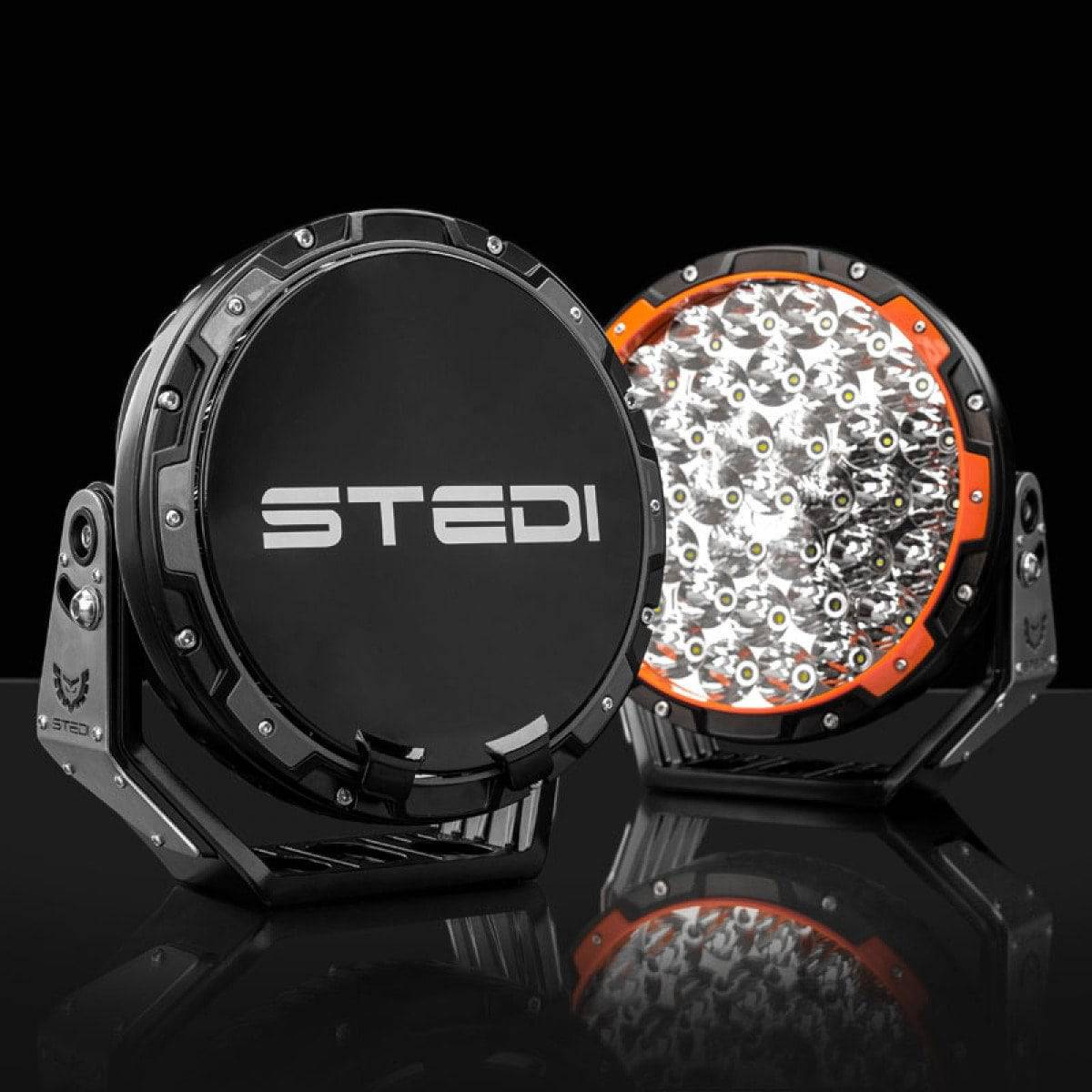

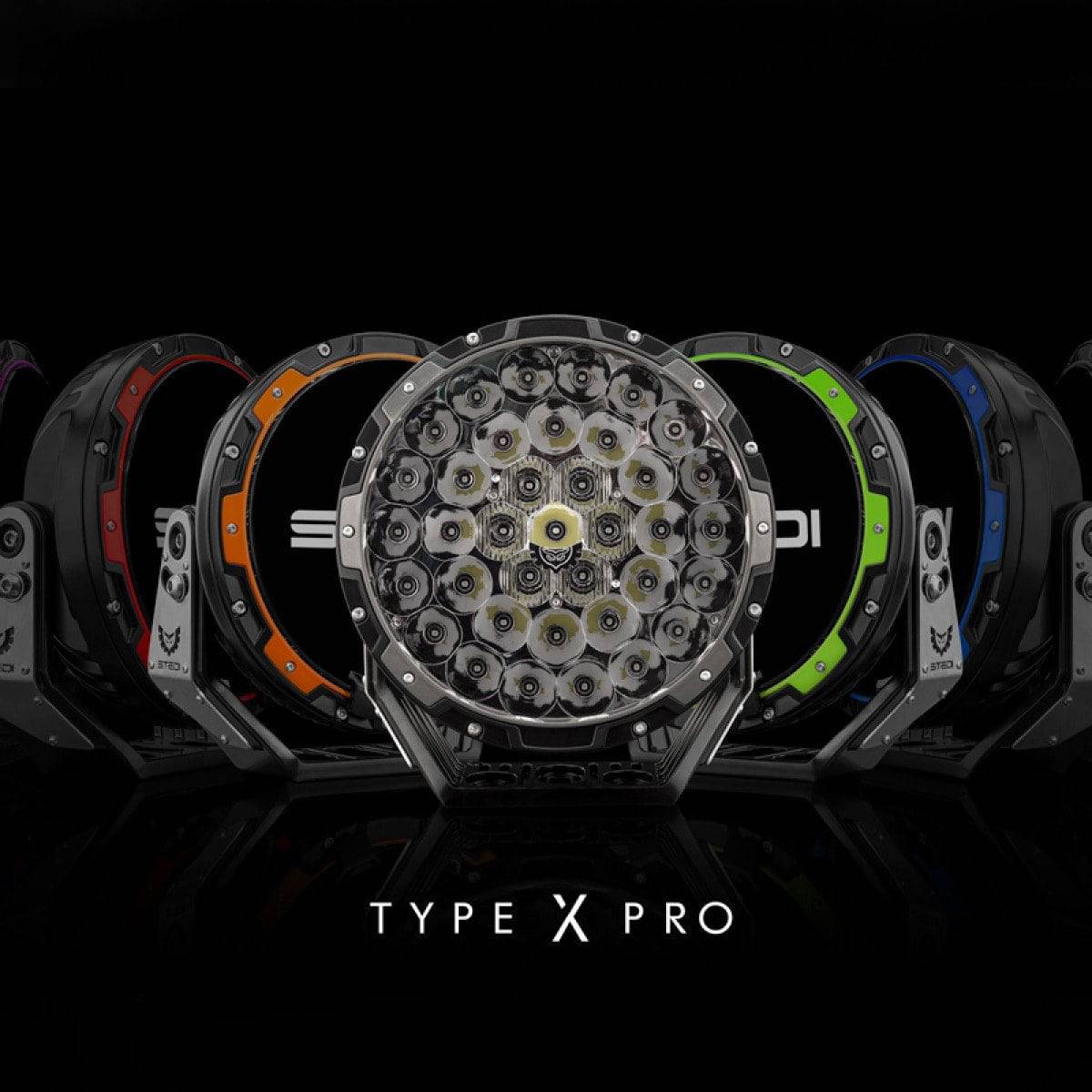

Pink? Green? Blue? Orange? Grey or all Black? The choice is yours. We've designed the inner ring fasteners to be independent of the main sealing structure, allowing you to change the colour that best suits. We've included grey and orange in the kit to get you started, or if you prefer all black, simply don't fit any ring at all. Our coloured filters and iconic STEDI smile covers are backward compatible too.
Additional colours sold separately.
A WOLF IN WOLF'S CLOTHING

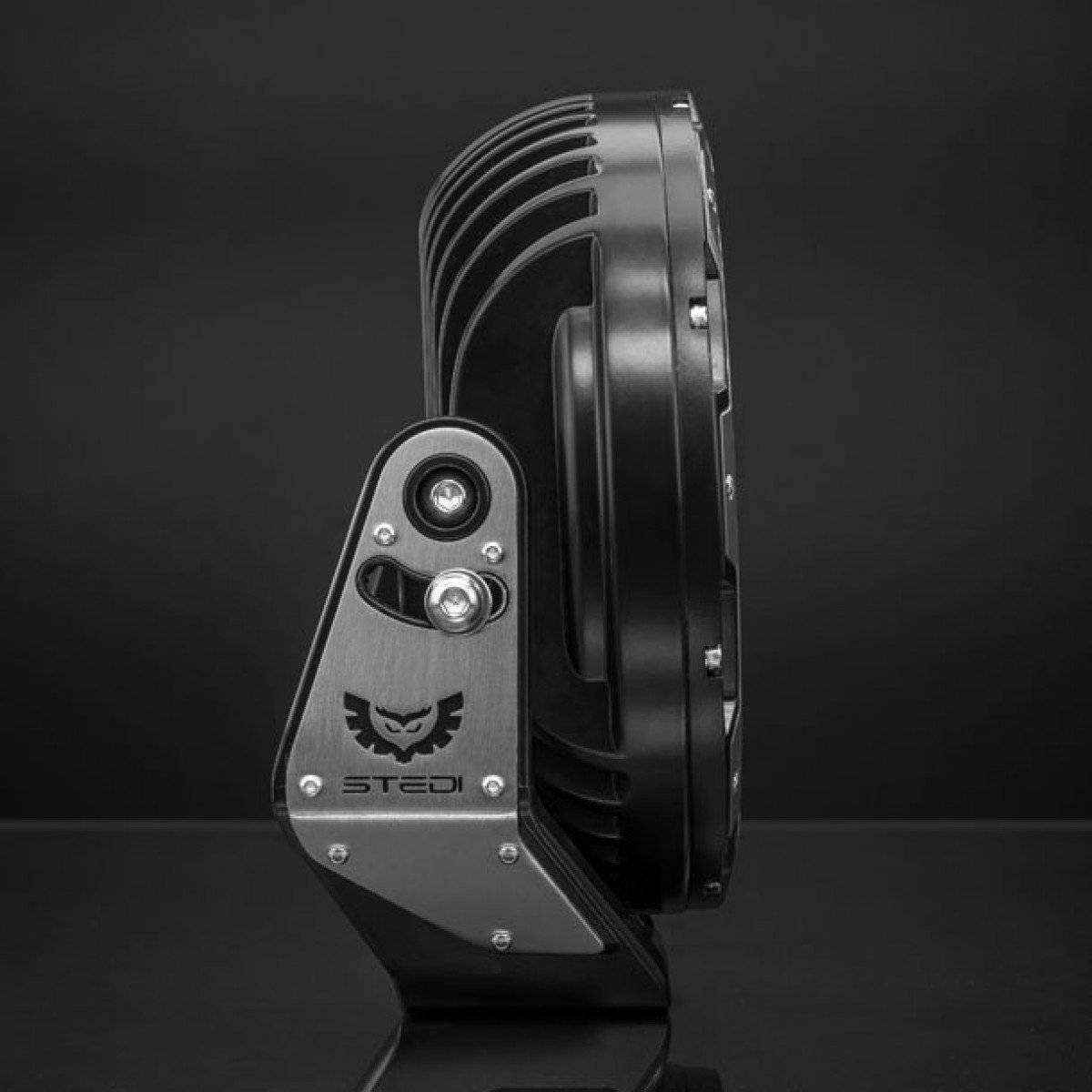

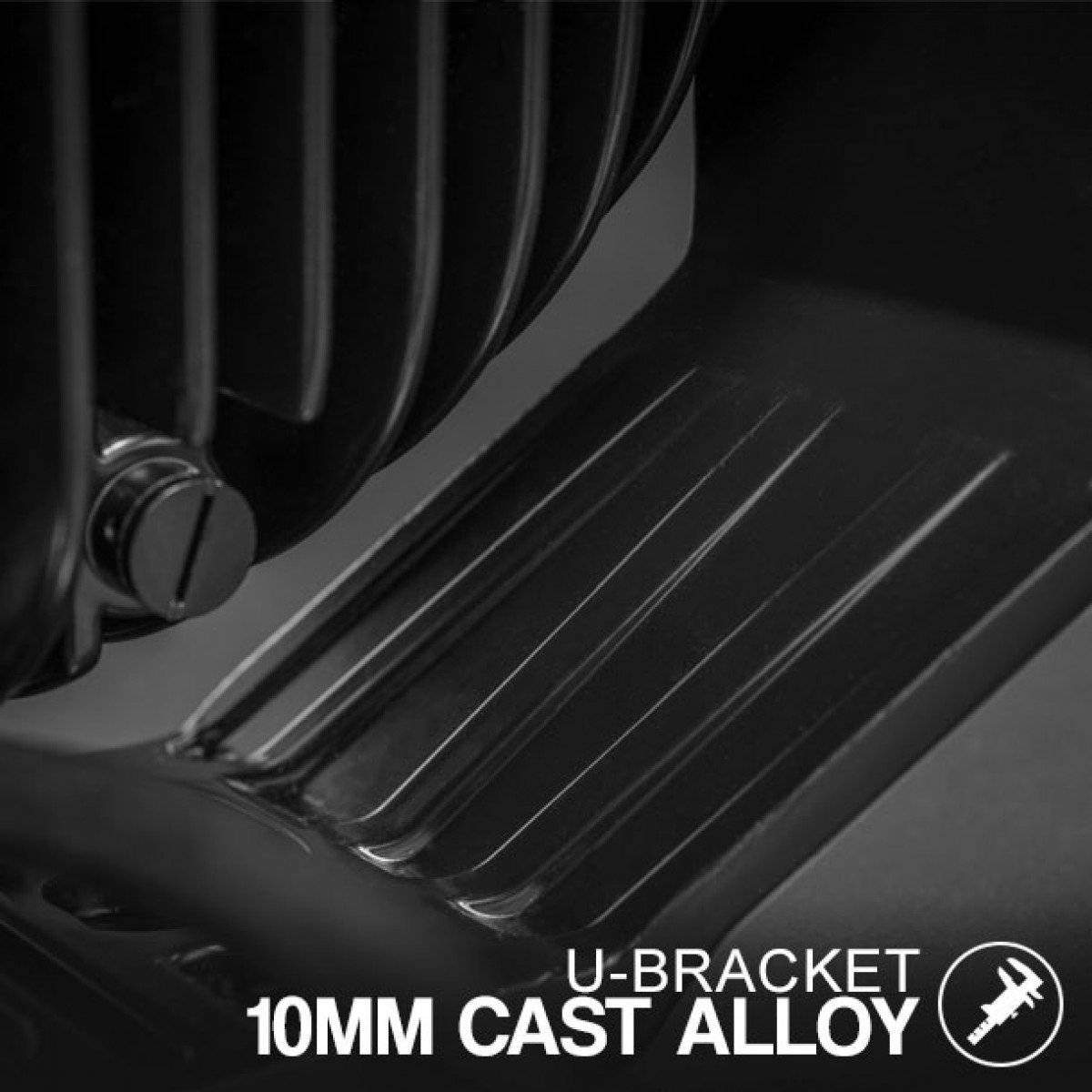

Forget folded steel brackets 3mm 4mm or 5mm it's all yesterday's news. Type-X™ PRO is all about pushing boundaries, the bracket system is a 10mm thick high-pressure die-cast aluminum marvel of engineering. Ribbed in all the right places to ensure no vibration and no prospect for fatigue. Our Type-X™ PRO bracket was designed to withstand extreme and prolonged corrugations time and time again. True to STEDI's signature design principles we’ve added brushed stainless steel shoulder plates, which will look just as comfortable on a tricked out 70 series as it will be mounted to a PRO race buggy.
PROPER TESTED PHOTOMETRIC DATA
Don’t confuse our Isolux and Lumens with the baseless numbers circulating around the internet. Our published specifications are comprehensively tested by a photometric laboratory. We stand by our photometric data.
ALWAYS ON THE CUTTING EDGE.

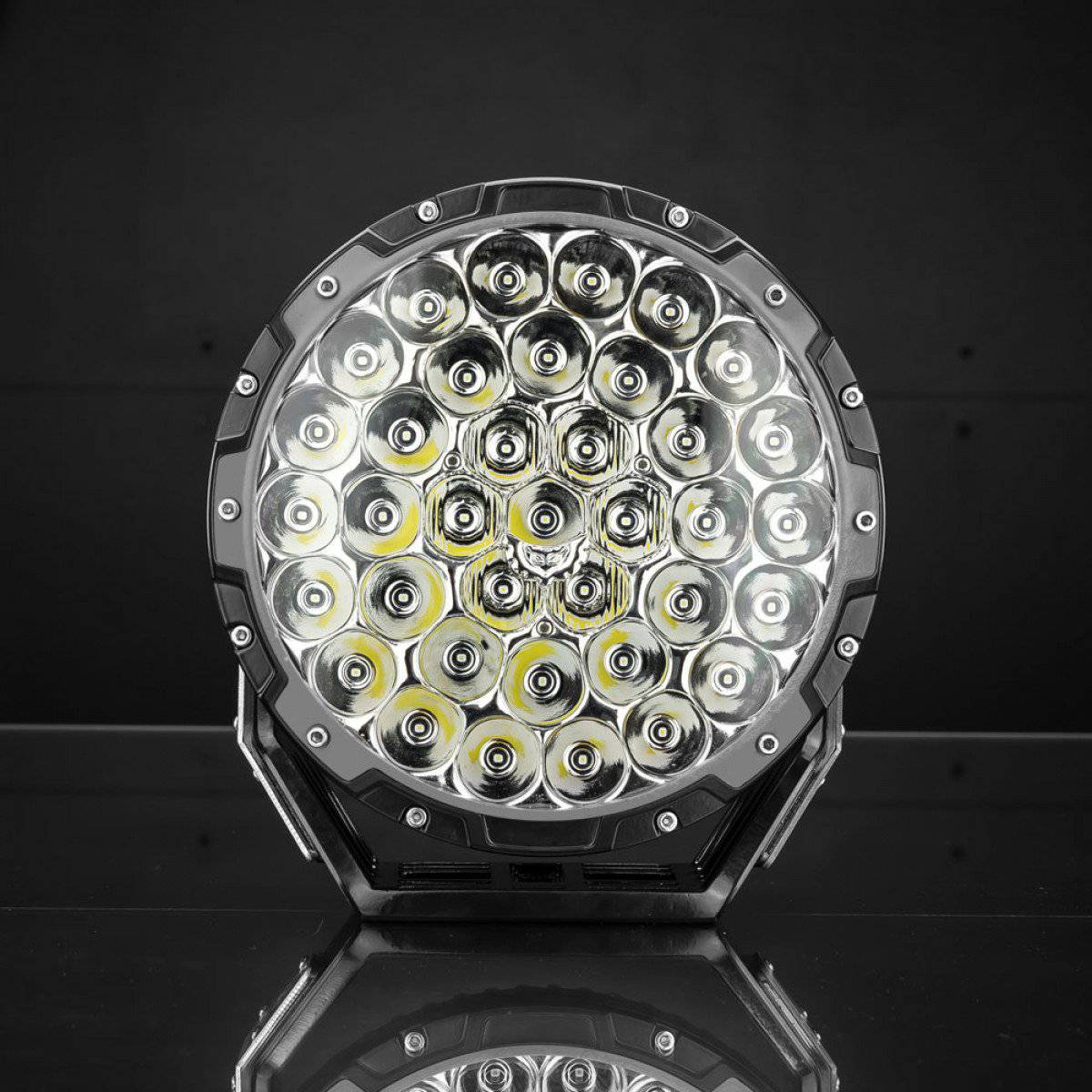

Cutting edge performance starts with cutting edge LED technology. To achieve genuine category-leading performance our Type-X™ Pro is equipped with 37 x Oslon High-Flux LEDs, selected for having the #1 highest lumen density per mm2 of any other comparable LED on the market. Compared to the two other leading spotlights brands similar offerings, the LEDs used in Type-X™ PRO have + 23% and +42% higher lumen density per mm2 in comparison. The net result is higher net light volume and unrivaled beam throw.
A WOLF IN WOLF’S CLOTHING
The hard-coated optical grade lens shares the same DNA as ballistic glass making it virtually indestructible. A UV stabiliser has also been added to ensure our lenses truly withstand the test of time with no discolouring or UV degradation. This has allowed us to do away with any secondary lens covers or filters which are known to significantly reduce light transmission.
Using the latest optic simulation modeling, the reflector geometry was tweaked over and over again to achieve a highly usable beam pattern. No doubt the attention grabber is the unrelenting beam distance of 1,155m (tested in pairs, combo beam), however, the real strength of our Type-X™ PRO is in mid to long light distribution that really sets it apart.
Our key focus was on driver confidence, by increasing the beam throw the driver has longer analysis time. We maximised driver comfort by smoothing out the beam eliminating shadows. We reduced the light wasted in unimportant zones like treetops and immediately in front of the vehicle. The result is a homogeneous, unrelenting beam that will support you well in any adventure. .

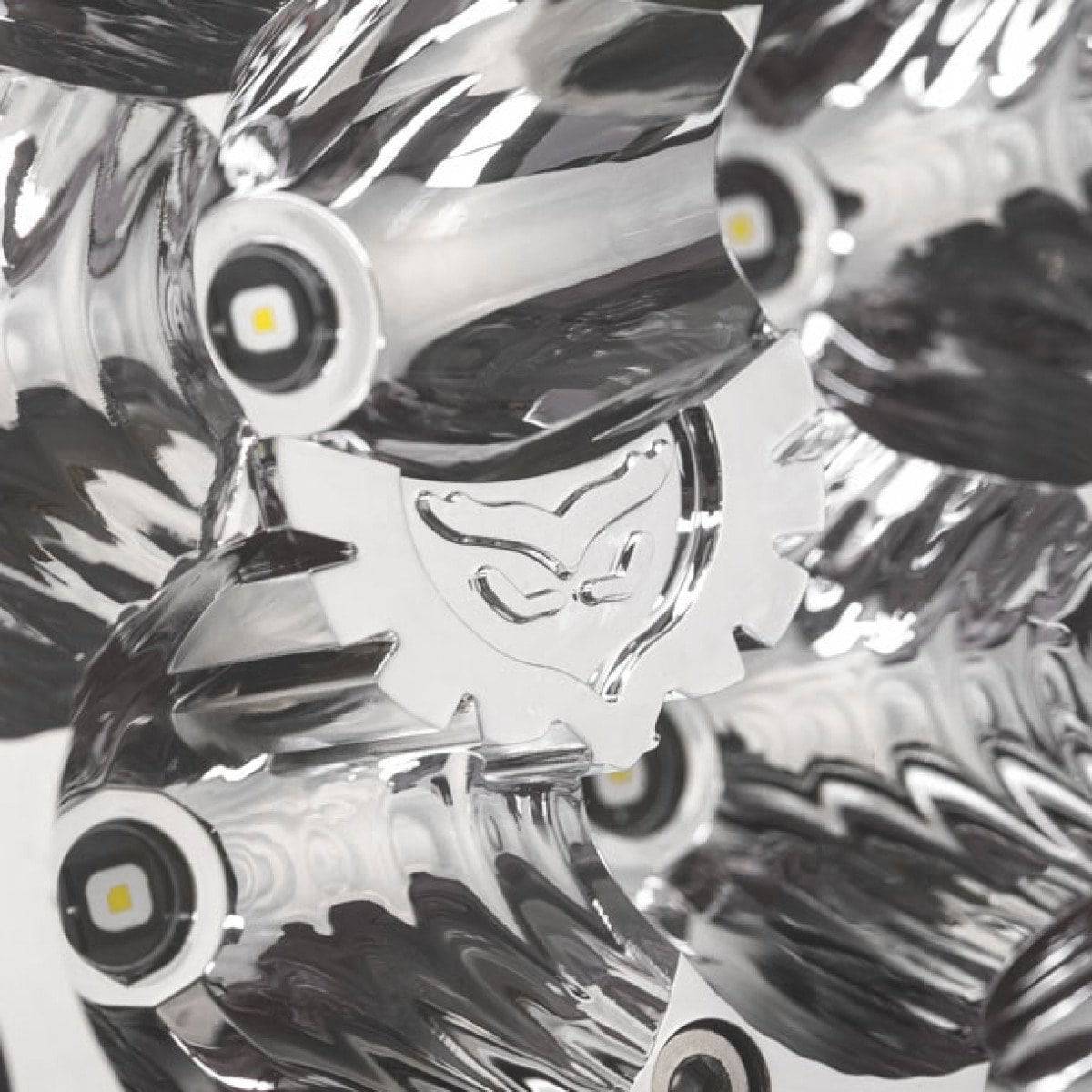

Unlike our competitors, each Type-X™ PRO lamp has 6 built-in flood reflectors for improved light distribution out into the road shoulders. The built-in wide-beam reflector eliminates the need to add any wide beam covers, which are not only less efficient at distributing light, covers also withhold valuable light transmission.
|LED||37 x Oslon High-Flux LED|
|RAW LUMENS||26,270 (Pair)|
|TESTED LUMENS||15,870 (Pair)|
|AMP DRAW||10.4A @ 13.2v (each)|
|BEAM PATTERN||6 x Spread 31 x Pencil Beam|
|INGRESS PROTECTION||IP68 | Submersible up to 3m|
|COLOUR TEMP (CCT)||5700K|
|VOLTAGE COMPATIBILITY||12v & 24v|
|LUMEN MAINTENANCE||50,000 LM-80|
|10 M||13,340 Lx|
|50 M||533 Lx|
|200 M||33 Lx|
|300 M||14 Lx|
|400 M||8 Lx|
|1,000 M||1.3 Lx|
|1,155 M||1 Lx|
WHAT’S IN THE BOX
- 2 x STEDI Type-X PRO LED Driving Lights

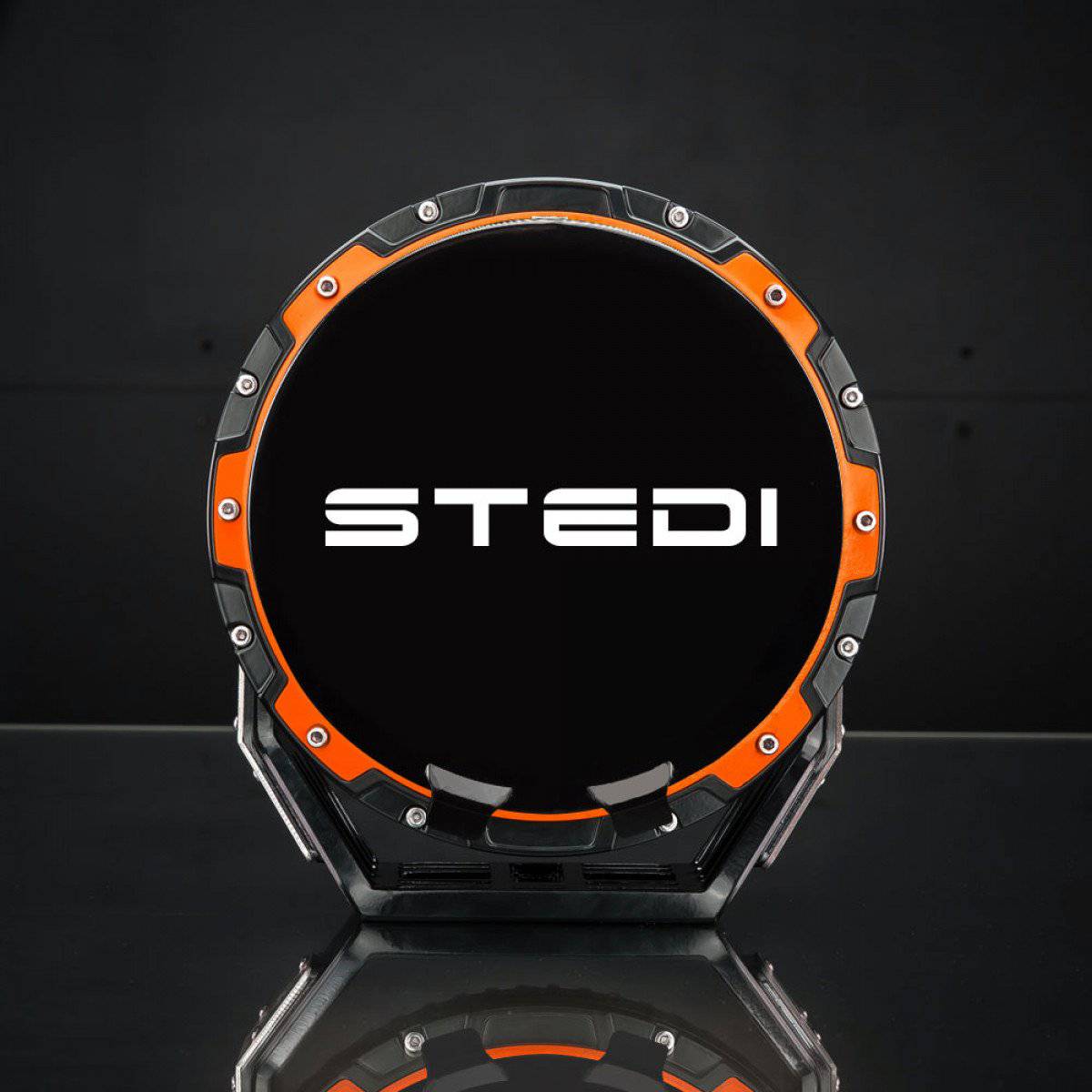

- 2 x Protective STEDI Black Out Covers
- 2 x Grey Colour Rings
- 2 x Orange Coloured Rings
- 1 x Smart High Beam Wiring Harness DTP-2 Sealed Connectors, H4, HB3 adapter plugs to high beam. 60A Relay, Fuse, Switch
- Complete Stainless Steel fastener kit.
- Wiring & Fitting Instructions
