Ultra Winch PDX MK3 9.5K Premium Electric Winch - 9,500LB

Save $75.00
Ultra WinchSKU: PDX95K MK3

Price:
Sale price$674.00 Regular price$749.00

Description



PDX MK3 -EXTENSIVELY UPDATED.
UNBEATABLE WARRANTY.

Go further with increased dependability. New solid cross brace design provides stronger rigidity whilst achieving an industry leading light weight of 20.16kg.
The PDX MK3 is designed to conquer the toughest environments with beefed up components for better longevity and peace of mind.

Note: Our 12K and 9.5K PDX winches are identical throughout with just different gear ratios which equates to different pulling force and line speed.

PDX Mk3 - 9,5000lb / 4318 KG

  • Complies with most 10,000lbs vehicle chassis warranties
  • Complies with most 10,000lbs limit bull bar warranties.
  • 90º Rotatable clutch housing design for easy access
  • Lifetime Mechanical Warranty
  • 7 Year Electrical winch Warranty
  • 7 Year Water Ingress Warranty
  • Wired and wireless hand remote included

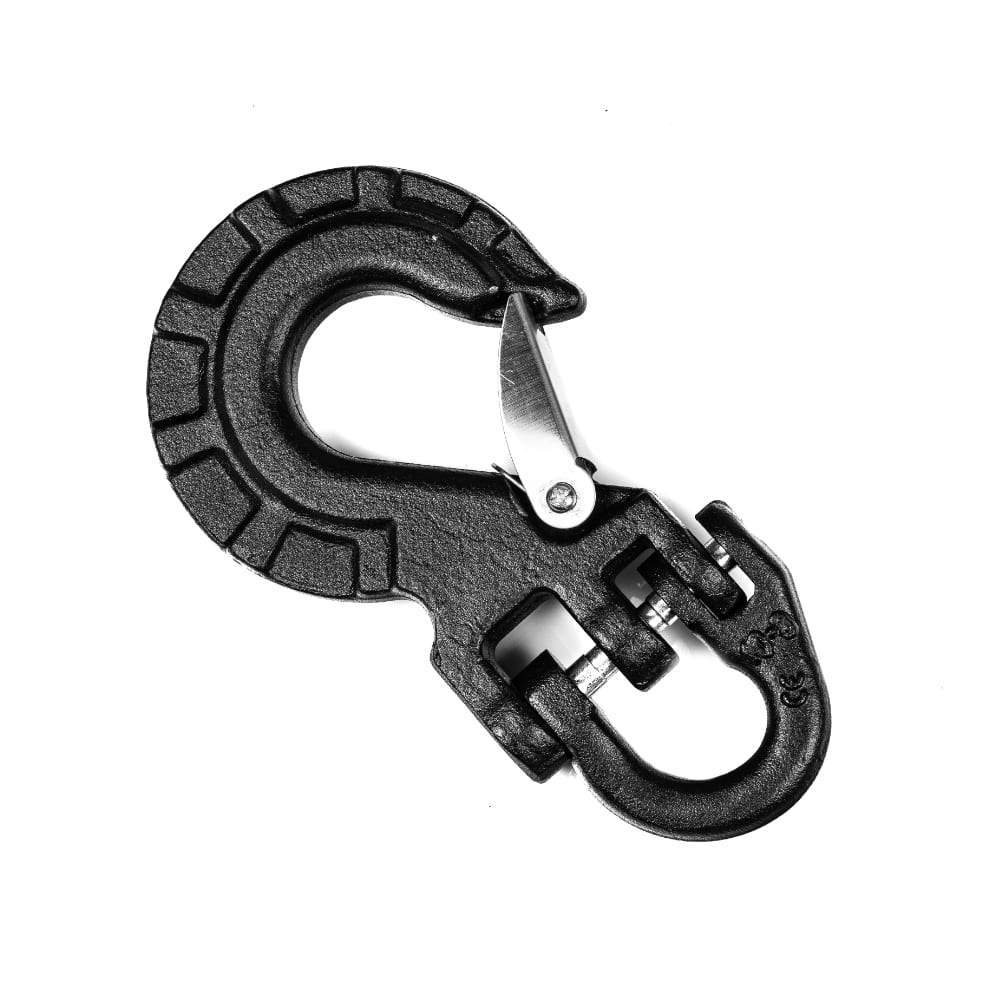

  • Winch hook with strap
  • Fairlead included
  • 202:1 Three stage planetary gearbox
  • 400A Solenoid - IP67 Waterproof: Extension Wiring Relocation Kit Available (beware of exaggerated figures).

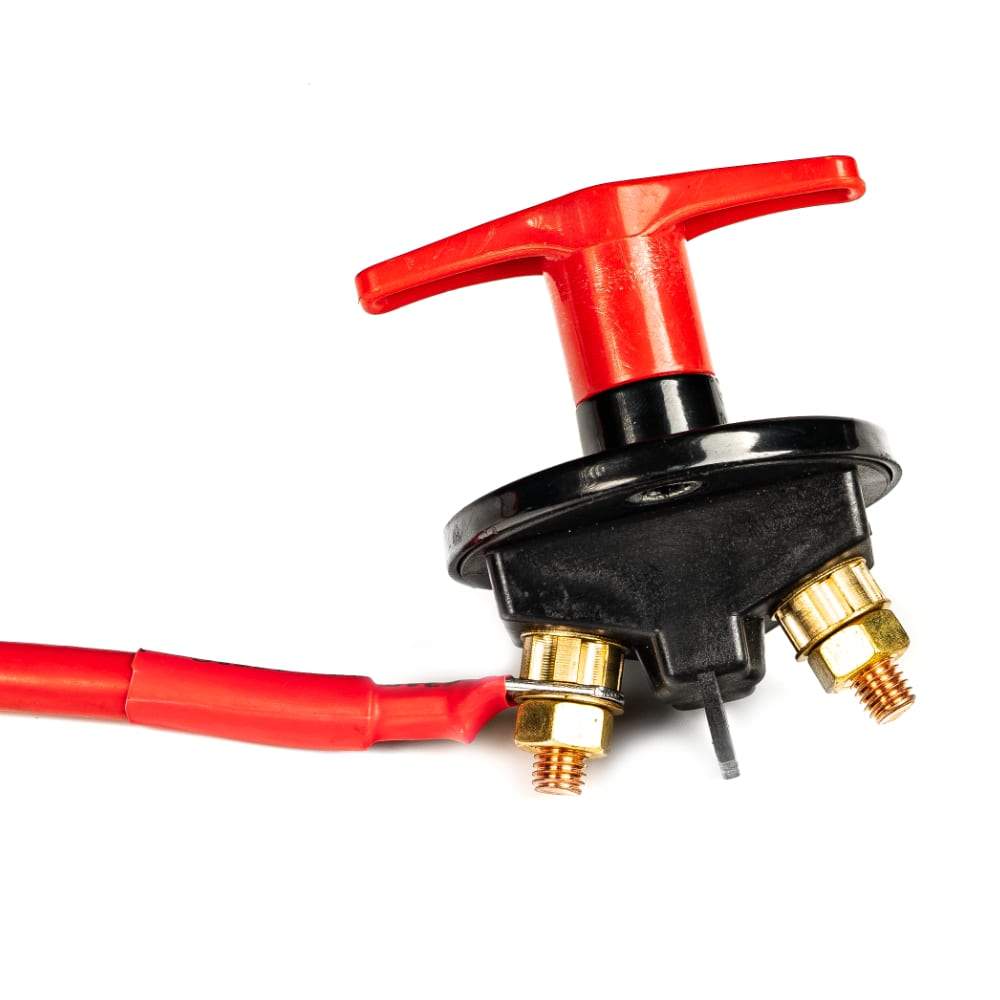

  • Battery Isolation Switch - Safety Key
  • 25Mx10.0mm 16,800lbs rated rope
  • 20.16kg Weight with synthetic rope. 22.5kg With Controller box, wiring and bolts.
  • Mechanical Braking System.

PDX MK3 UPDATES

  • New Extra heavy duty wiring with protective sheathing.
  • New hardened alloy gear set with molybdenum grease.
  • Updated Heavy Duty solenoid.
  • Mounting nuts pre fitted for easier installation.



  • Smaller control box. (Relocatable. Can be installed adjacent to winch within bull bar).
  • Updated synthetic rope with stronger, solid eyelet.
  • New in cabin wired controller included.
  • New multi fit fair lead (off set and standard orientation).
  • Thicker gauge and longer length control box wiring.


Control box can be relocated adjacent to the winch within the bull bar.

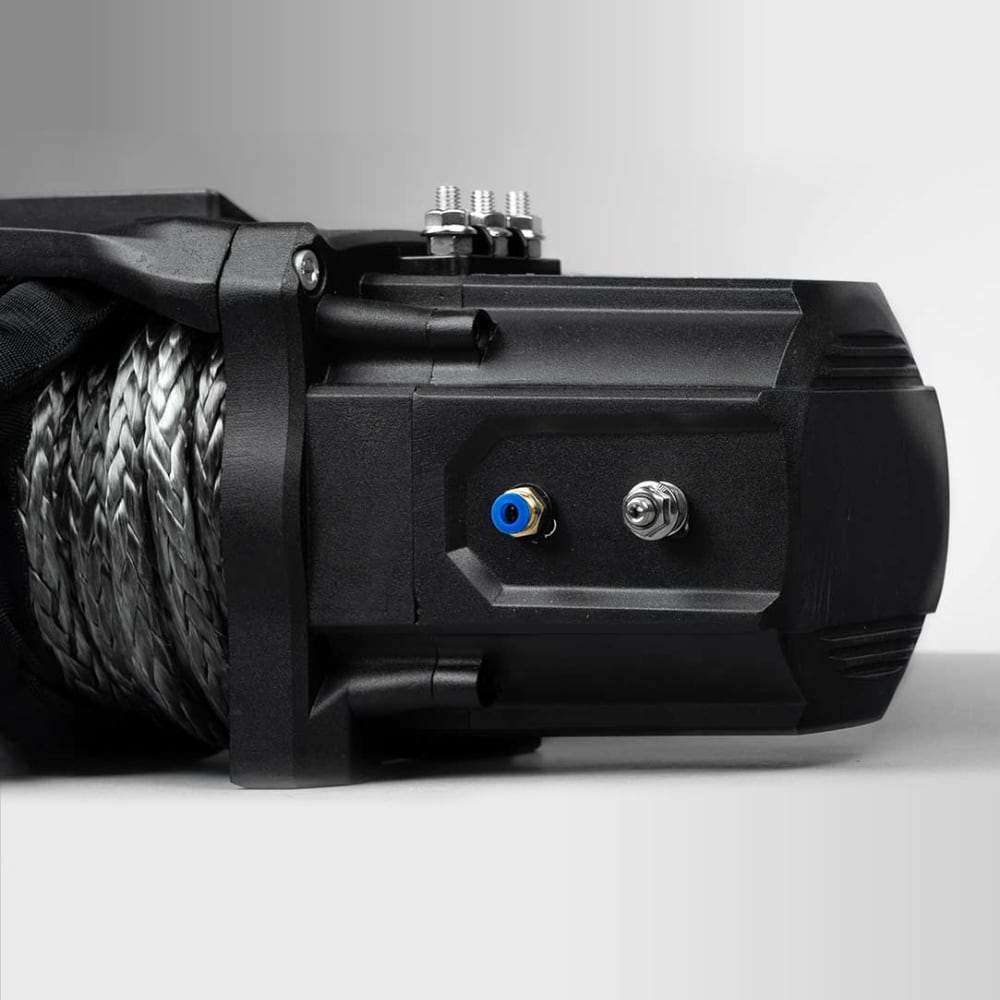

  • SEAL PROTECTIVE BREATHER VALVE

    The included breather valve kit reduces potential pressure built up from the 4.8KW motor during hard operation. Conventional full sealed winches can fail during rapid cool down such as water crossings, negative pressure is the number one culprit for moisture ingress. .

  • POWER PACKED

    Designed to pull and keep pulling, our custom designed electric motor won't love you and leave you. From the balanced armatures, electroplated planetary gearsets and sealed, high speed bearings, every detail has been engineered to give you maximum performance.

  • OVER 50% STIFFER

    Where conventional designs consist of only two separate cross bars the PDX features a unique single cast torsional brace to provide the ultimate rigidity and strength in torsional bending.

  • FASTER RECOVERIES

    Dial in the clutch handle position for ergonomic access. Disengaging the gearbox provides effortless and fast line pulling for faster recoveries.


DETAILS

WARRANTED WITH CONFIDENCE

  • 7 Year Product Warranty
  • 7 Year Water Ingress Warranty
  • Limited Lifetime Gear Train Warranty

Performance with less current draw.

LINE PULL LBS(KGS) Line speed metre/min(inch/min) Current (Amps)
0 5.22 (205.5) 65
2000(907) 4.34 (171) 125
4000(1818) 3.1 (122.5) 179
6000(2727) 2.68 (105.6) 224
8000(3636) 2.3 (90.5) 265
9500(4318) 2.13 (84) 310





SPECIFICATIONS

VOLTAGE 12V DC
RATED TO 9,500lbs - 4.31 tonnes
ROPE 9.5mm x24M
CONTROL Wired Remote + Wireless Controller
GEAR TRAIN 3 Stage Planetary - Sealed - 202:1 Ratio
BRAKING Automatic load holding
HANDLE Forged
DRUM SIZE 63.5mmx224mm
MOTOR 6.5Hp - 4.8kW, Wound sealed
MOUNTING BOLT PATTERN 254x114.3mm
DIMENSIONS (WXHXD) 564mm x 281mm x 160mm
WEIGHT 20.16kg

WHAT’S INCLUDED

  • PDX 9.5K Winch - 9,500lbs

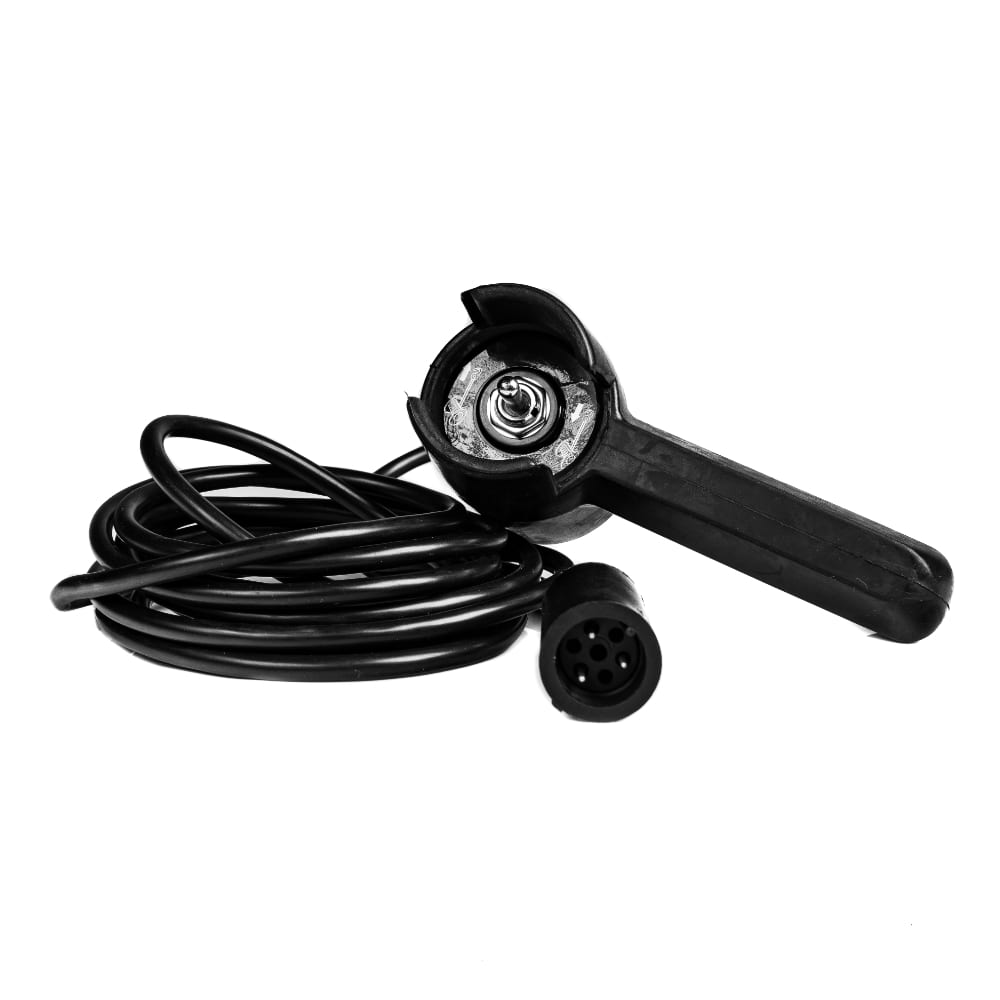

  • Wired Remote - 1x

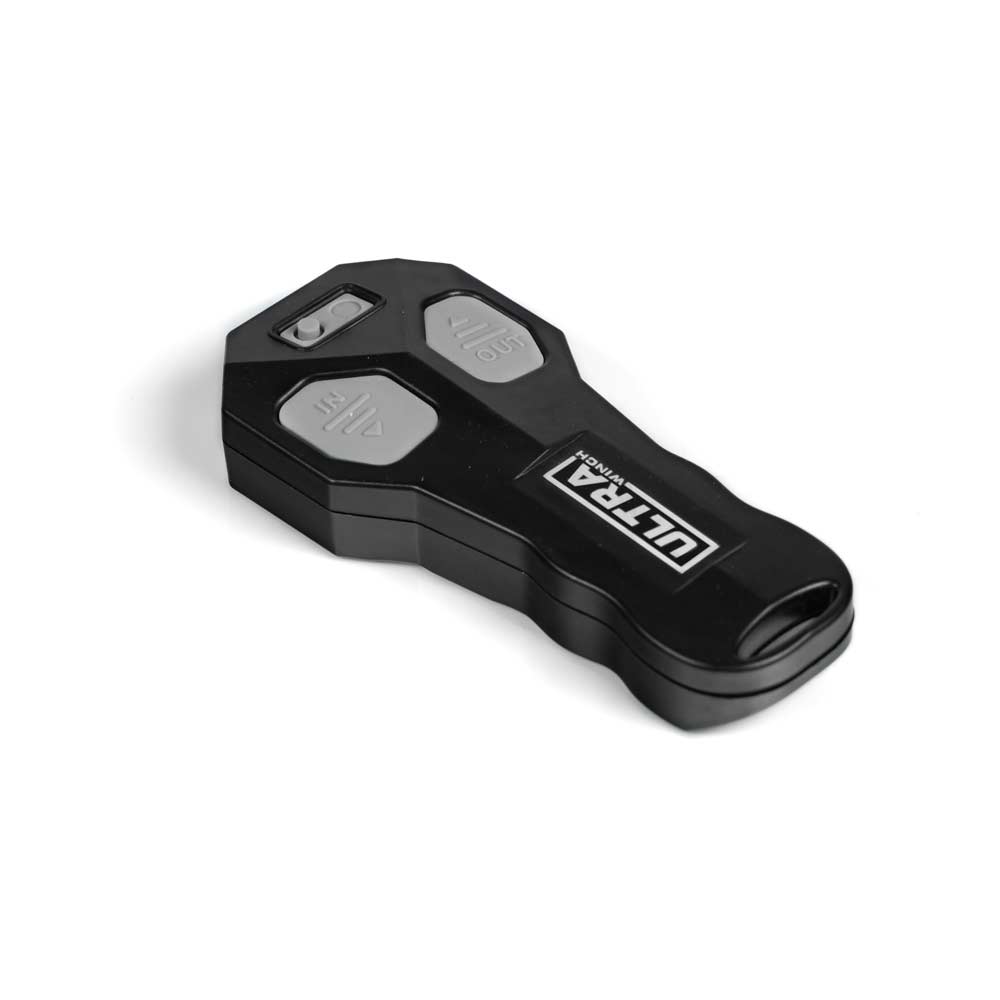

  • Wireless Remote - 1x

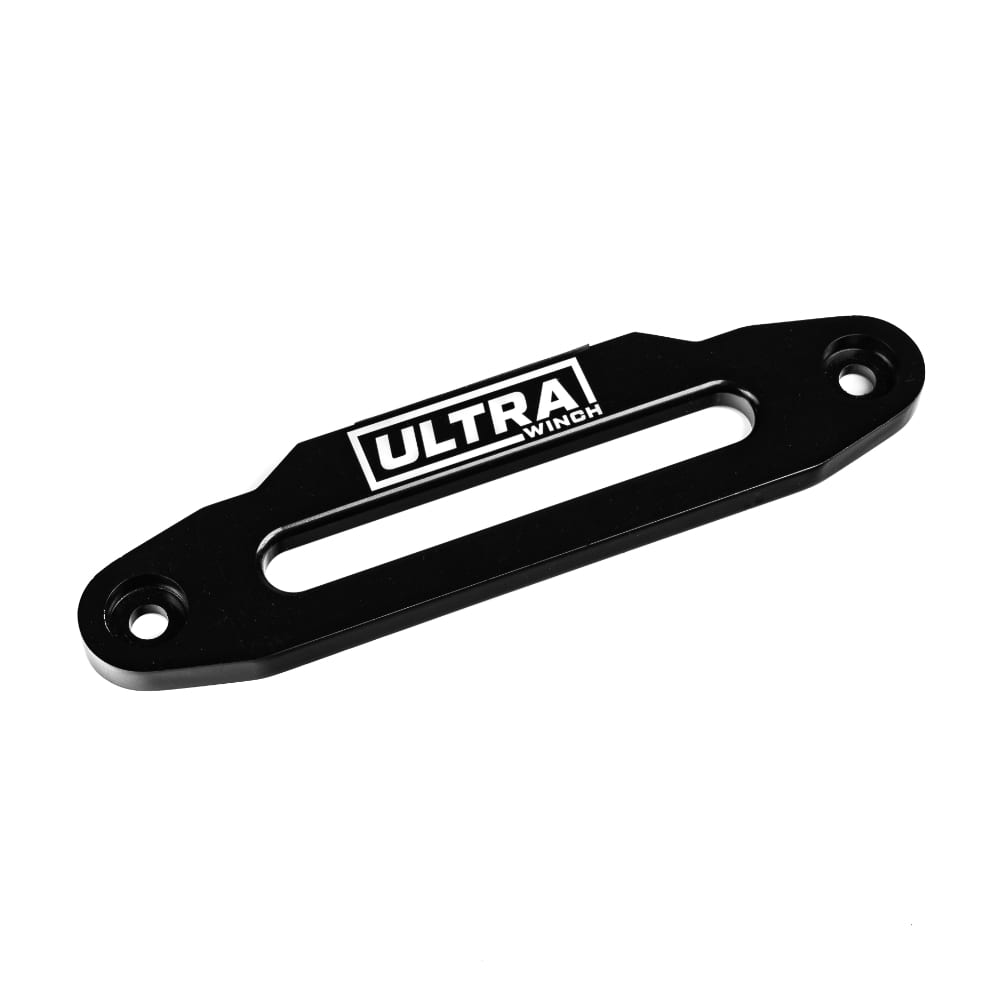

  • Fairlead
  • Battery Isolation Switch
  • Black Hook
  • Breather Valve Hose Kit
  • Controller Box
